Ethernet Module Communications Network - Component Location
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |

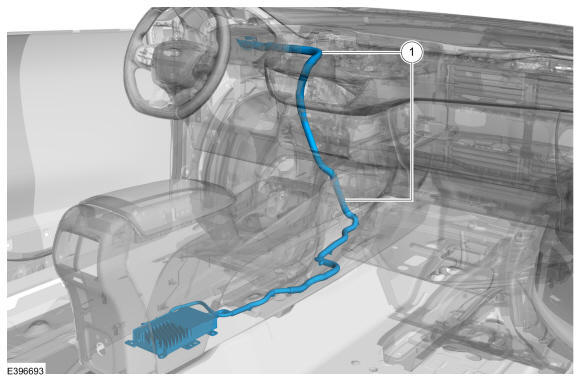

TCU Ethernet cable routing |
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |

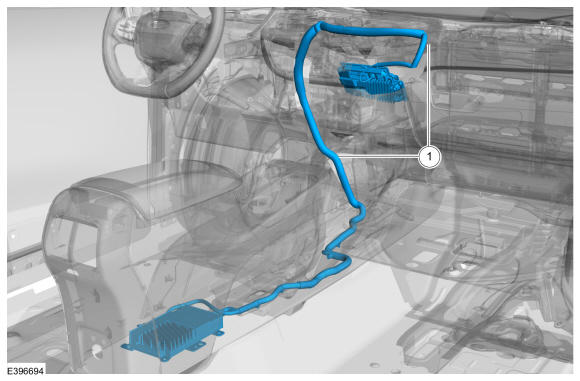

IPC Ethernet cable routing |
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |

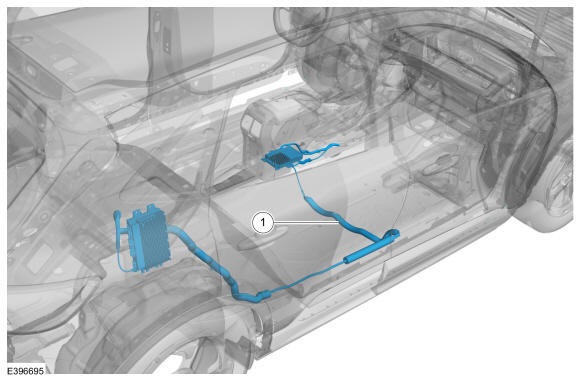

APIM Ethernet cable routing |
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |

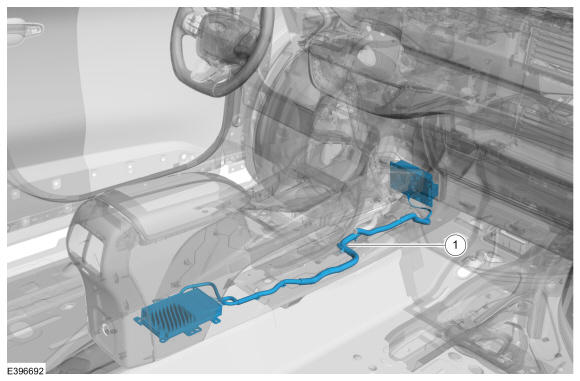

IPMA Ethernet cable routing |
