System Diagrams

WARNING: This page is about a different car, the 2023 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

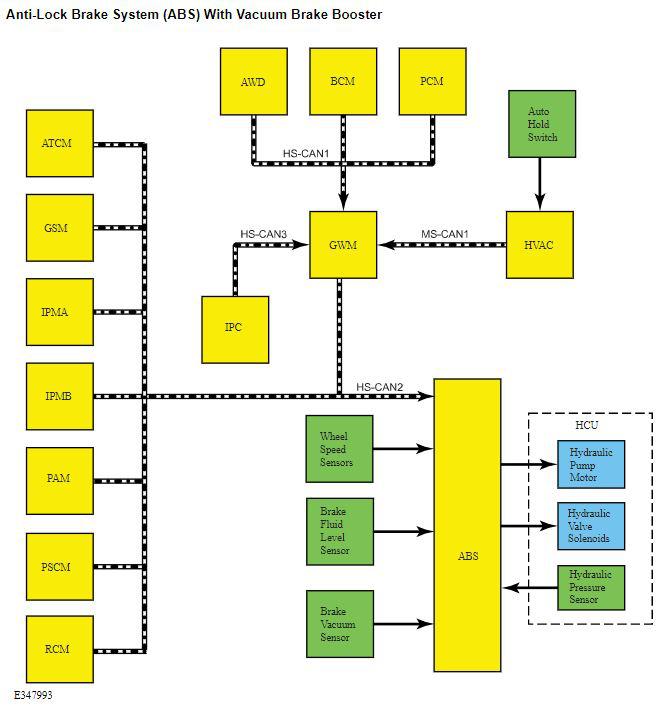

Anti-Lock Brake System (ABS) With Vacuum Brake Booster

G00635928Courtesy of FORD MOTOR COMPANY

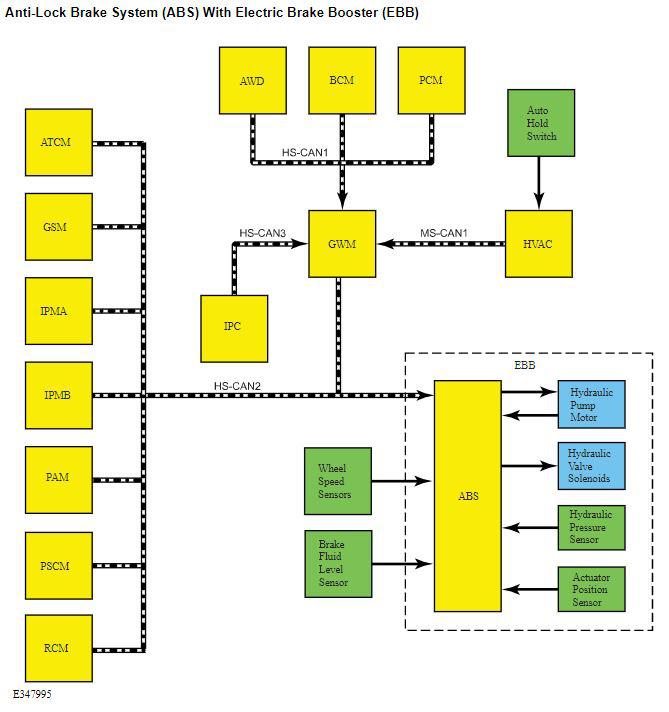

Anti-Lock Brake System (ABS) With Electric Brake Booster (EBB)

G00635929Courtesy of FORD MOTOR COMPANY
