Accelerator Pedal: Removal
WARNING: This page is about a different car, the 2023 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE: To prevent setting DTC make sure the ignition is in the OFF position prior to disconnecting the accelerator pedal electrical connector.

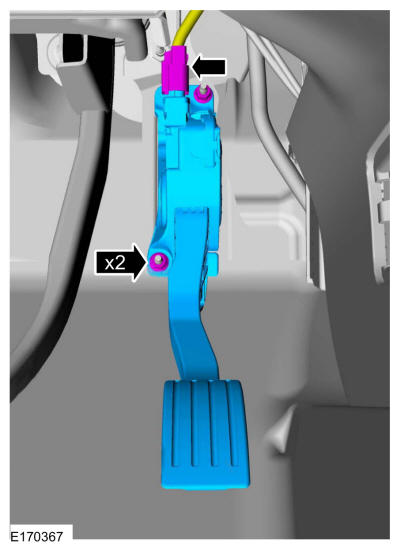

Disconnect the electrical connector, remove the nuts and the accelerator pedal assembly.
Torque
: 71 lb.in (8 Nm)
