Piston Selection: Check
- Refer to specifications for piston selection. Refer to: Specifications .
-
NOTE: The cylinder bore must be within the specifications for taper and out-of-round before fitting a piston.

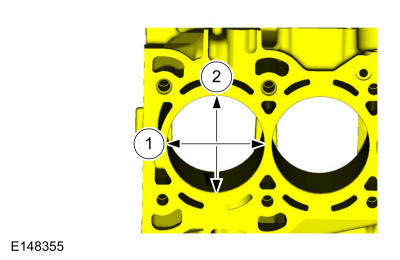

- Measure the cylinder bore in 2 directions.
- Select a piston size based on the cylinder bore.
