Cruise Control Module (CCM): Installation

WARNING: This page is about a different car, the 2023 Ford Mustang Mach-E. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse the removal procedure.

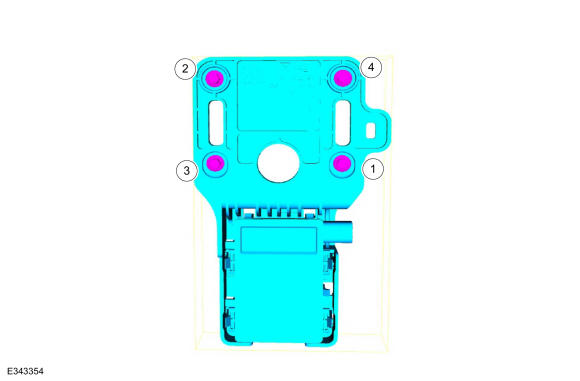

Install and tighten the screws in the following sequence.
1. Install and tighten the CCM bracket screw.
  Torque

  : 36 lb.in (4.1 Nm)
2. Install and tighten the CCM bracket screw.
  Torque

  : 36 lb.in (4.1 Nm)
3. Install and tighten the CCM bracket screw.
  Torque

  : 36 lb.in (4.1 Nm)
4. Install and tighten the CCM bracket screw.
  Torque

  : 36 lb.in (4.1 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

Using a diagnostic scan tool, complete the PMI process for the CCM following the on-screen instructions.
Align the CCM. Refer to: Cruise Control Radar Alignment .
