Cruise Control Module (CCM): Removal
WARNING: This page is about a different car, the 2023 Ford Mustang Mach-E. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the front bumper cover. Refer to: Front Bumper Cover .
-
NOTE: Follow the unique instructions or graphics for this step in the installation.

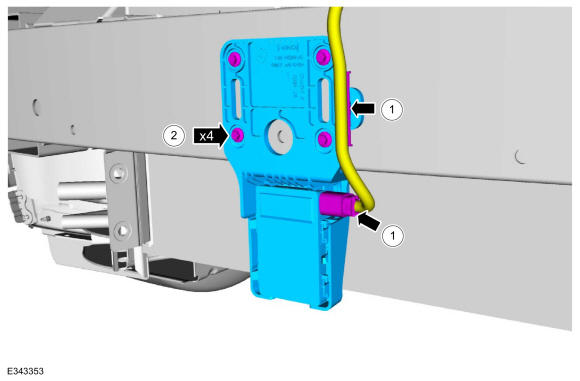

Remove the CCM and bracket.
- Detach the wire harness retainer and disconnect the CCM wiring connector.
- Remove the screws and the CCM and bracket.
