Passenger Door Window Control Switch Component Testing

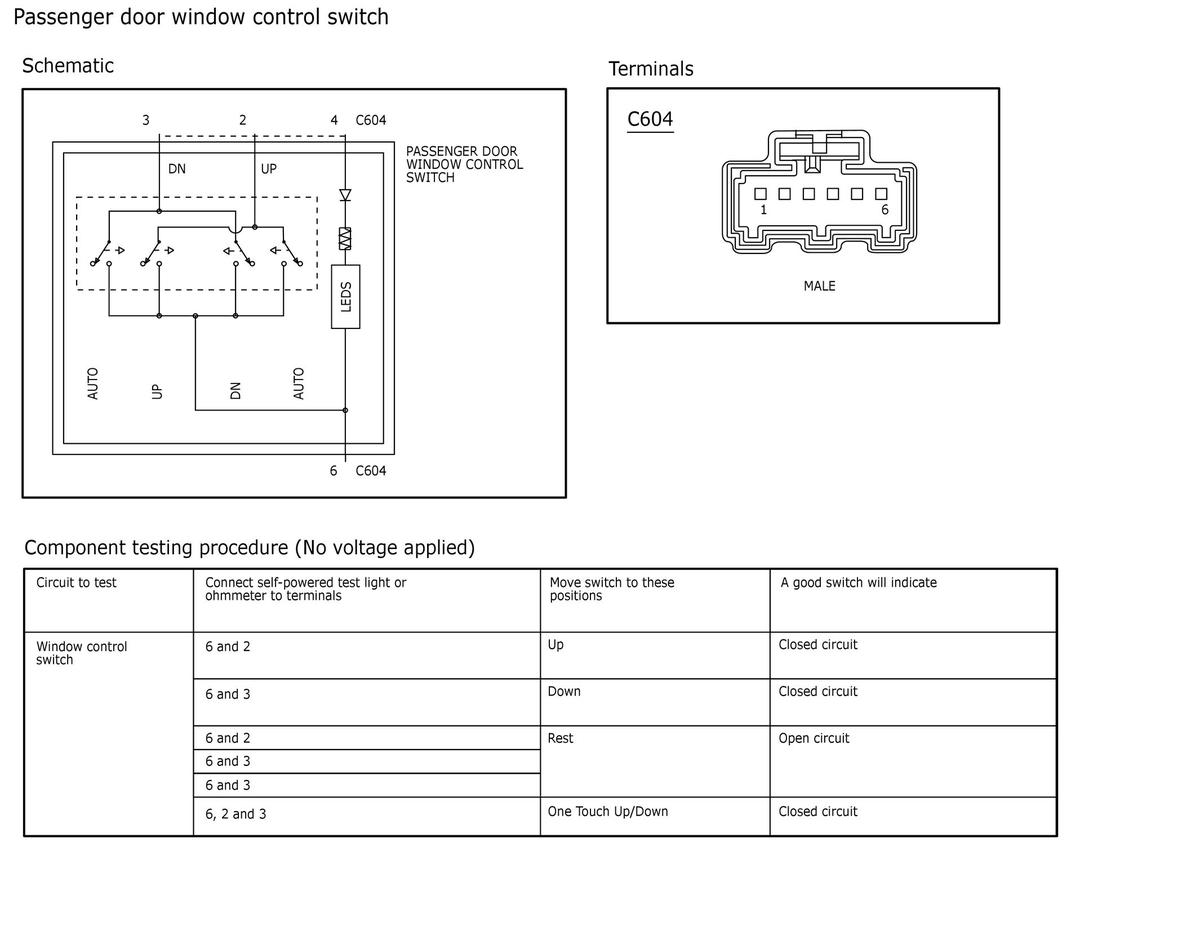

Fig 1: Passenger Door Window Control Switch Component Testing
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
