Hydraulic Control Unit (HCU): Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The PMI process must begin with the current ABS module installed. If the current ABS module does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the ABS module following the on-screen instructions.
Remove the LH fender splash shield. Refer to: Fender Splash Shield .

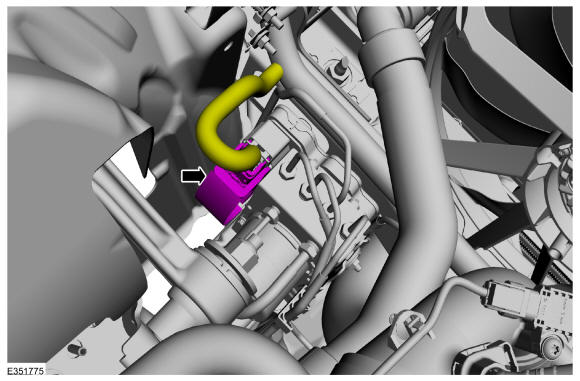

Disconnect the ABS module electrical connector.

Courtesy of FORD MOTOR COMPANY

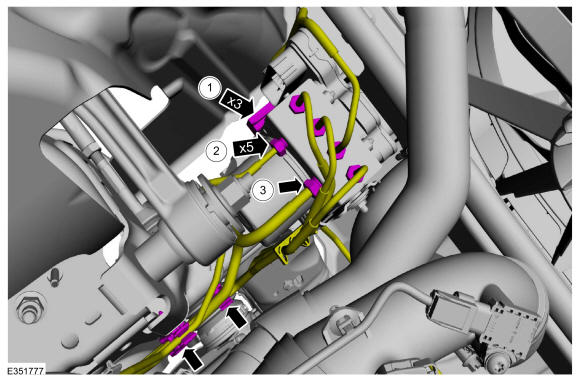

1. Detach the brake tube retainers.
2. Disconnect the brake tube fittings.
  Torque

  : 159 lb.in (18 Nm)
3. Disconnect the brake tube fitting.
  Torque

  : 17 lb.ft (23 Nm)
Courtesy of FORD MOTOR COMPANY

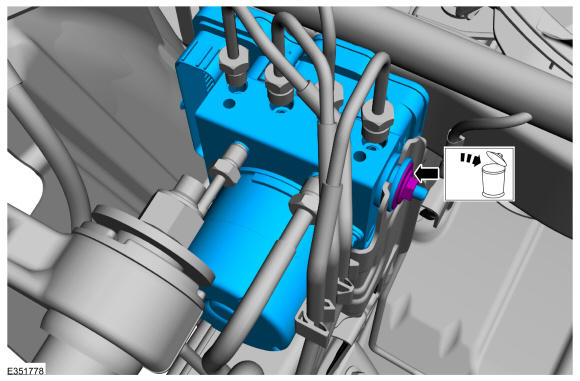

Remove the nut, washer and the HCU and ABS module assembly. Discard the nut and washer.
Torque

: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

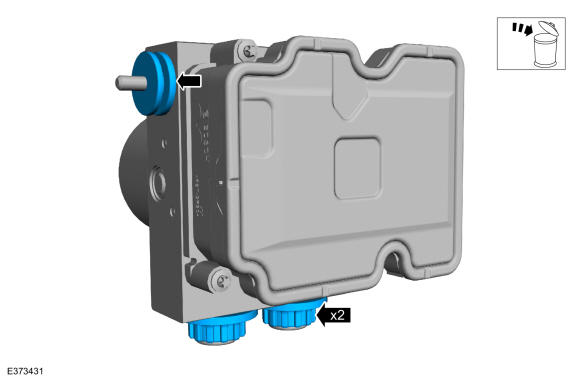

Remove and discard the HCU isolators.

Courtesy of FORD MOTOR COMPANY
