Image Processing Module A (IPMA): Removal

NOTE: Removal steps in this procedure may contain installation details.

High Roof

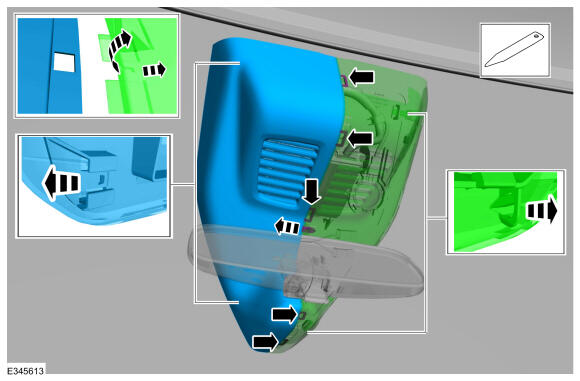

  1. Use the General Equipment: Interior Trim Remover
    GFD841121Courtesy of FORD MOTOR COMPANY

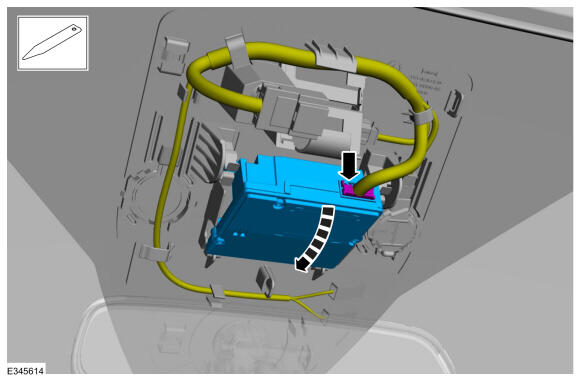

  2. NOTE: Make sure that the cable cannot be damaged or cause a noise, vibration or harshness (NVH) concern.

    Use the General Equipment: Interior Trim Remover

    GFD841122Courtesy of FORD MOTOR COMPANY

    Low Roof

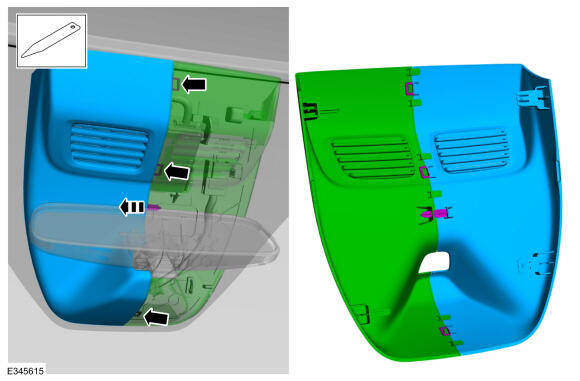

  3. Use the General Equipment: Interior Trim Remover
    GFD841123Courtesy of FORD MOTOR COMPANY

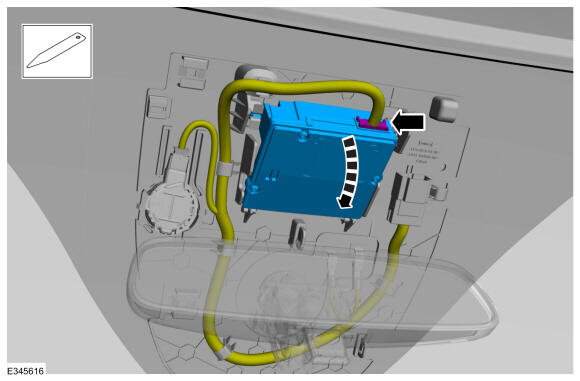

  4. NOTE: Make sure that the cable cannot be damaged or cause a noise, vibration or harshness (NVH) concern.

    Use the General Equipment: Interior Trim Remover

GFD841124Courtesy of FORD MOTOR COMPANY
