Power Steering Controls

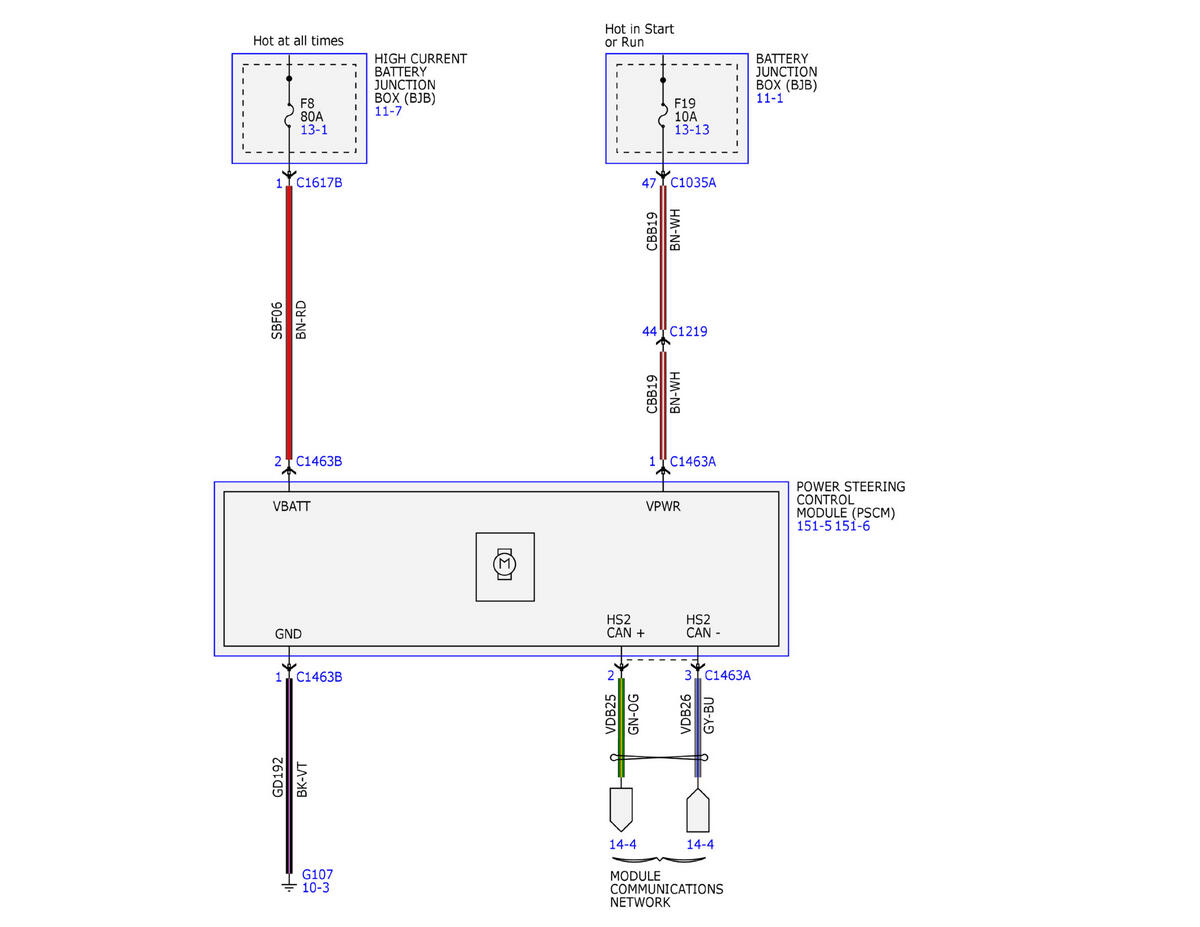

Fig 1: Power Steering Control Wiring Diagram
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
