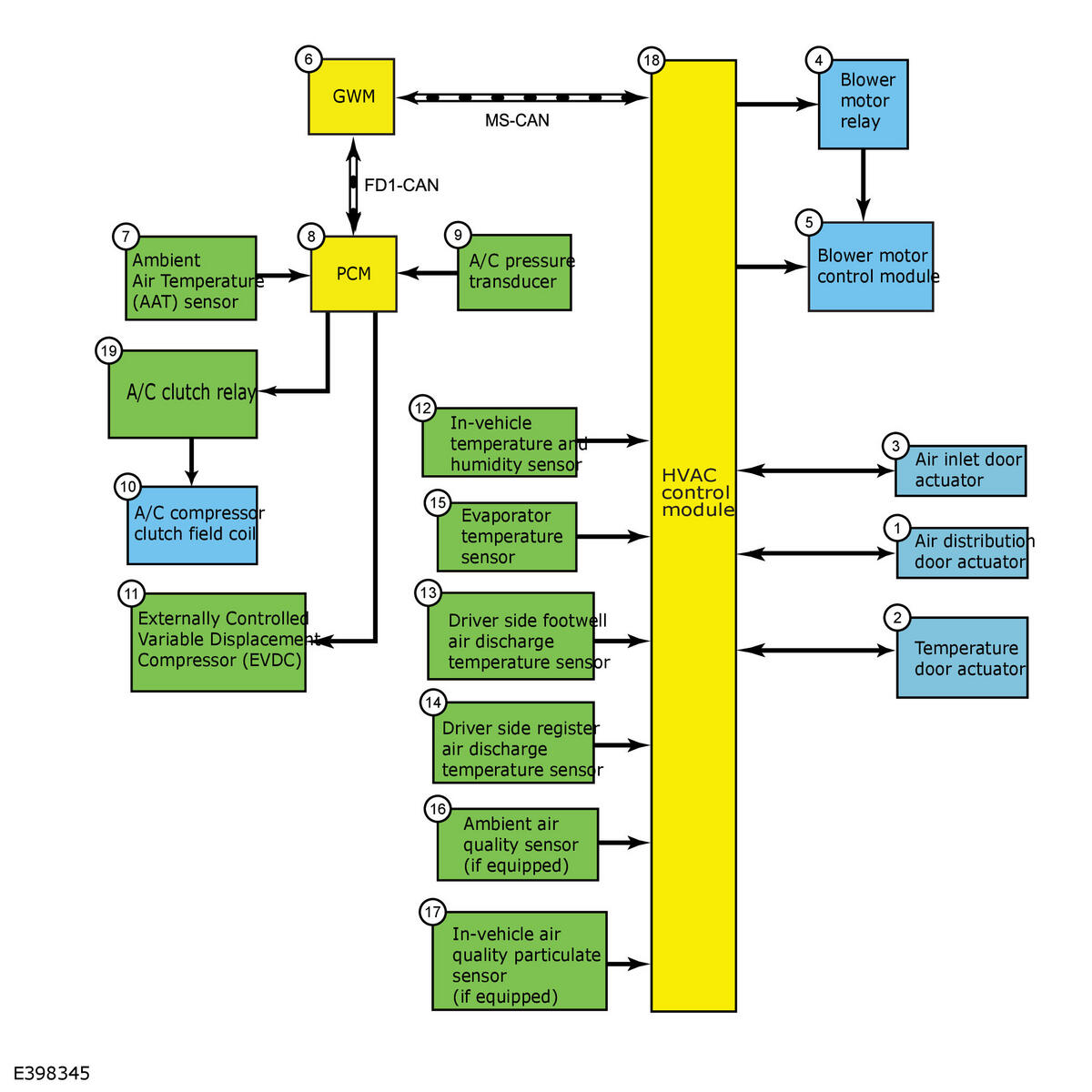

System Diagram
| Item | Description |
|---|---|
| 1 | Air distribution door actuator |
| 2 | Temperature door actuator |
| 3 | Air inlet door actuator |
| 4 | Blower motor relay |
| 5 | Blower motor control module |
| 6 | GWM |
| 7 | Ambient Air Temperature (AAT) sensor |
| 8 | PCM |
| 9 | A/C pressure transducer |
| 10 | A/C compressor clutch field coil |
| 11 | Externally Controlled Variable Displacement Compressor (EVDC) |
| 12 | In-vehicle temperature and humidity sensor |
| 13 | Driver side footwell air discharge temperature sensor |
| 14 | Driver side register air discharge temperature sensor |
| 15 | Evaporator temperature sensor |
| 16 | Ambient air quality sensor (if equipped) |
| 17 | In-vehicle air quality particulate sensor (if equipped) |
| 18 | HVAC control module |
| 19 | A/C clutch relay |
