Image Processing Module A (IPMA): Removal

WARNING: This page is about a different car, the 2023 Ford Mustang Mach-E. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps may contain installation instructions.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Remove the loadspace trim panel. Refer to: Loadspace Trim Panel .

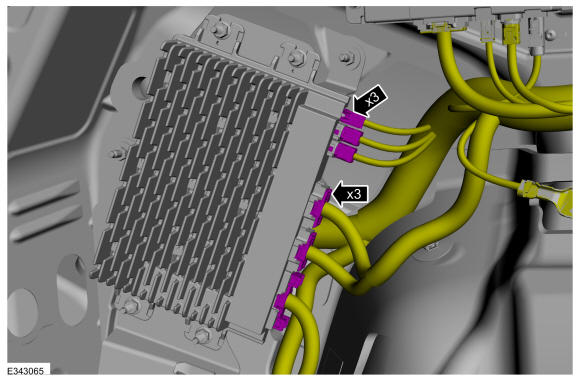

Disconnect the IPMA electrical connectors.

Courtesy of FORD MOTOR COMPANY

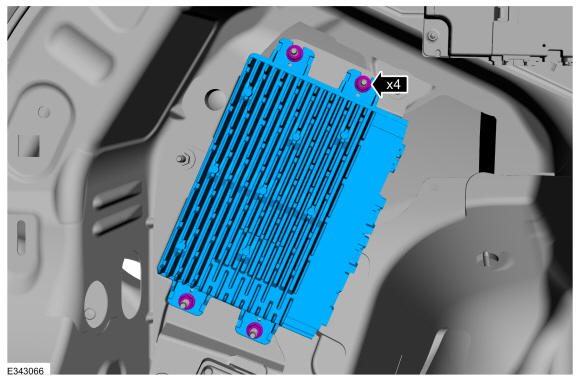

Remove the nuts and IPMA.
Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY
