Blower Motor Resistor: Service and Repair

REMOVAL
1. Disconnect and isolate the battery negative cable.

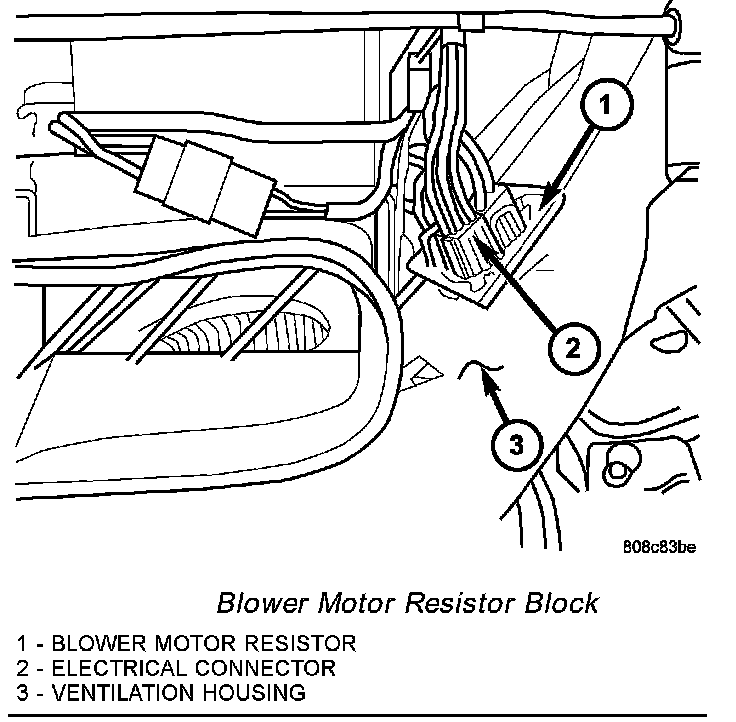

Blower Motor Resistor Block:

2. Depress resistor block locking tab and remove resistor block from the ventilation housing by sliding the resistor block inboard.
3. Depress two locking tabs and unplug the wire harness connector from the blower motor resistor block.
4. Remove the blower motor resistor from the engine compartment.

INSTALLATION
1. Connect the wire harness connector to the blower motor resistor block.
2. Install the blower motor resistor into the ventilation housing. The housing is indexed to allow mounting in only one position.
3. Reconnect the battery negative cable.
