Power Window Switch: Testing and Inspection

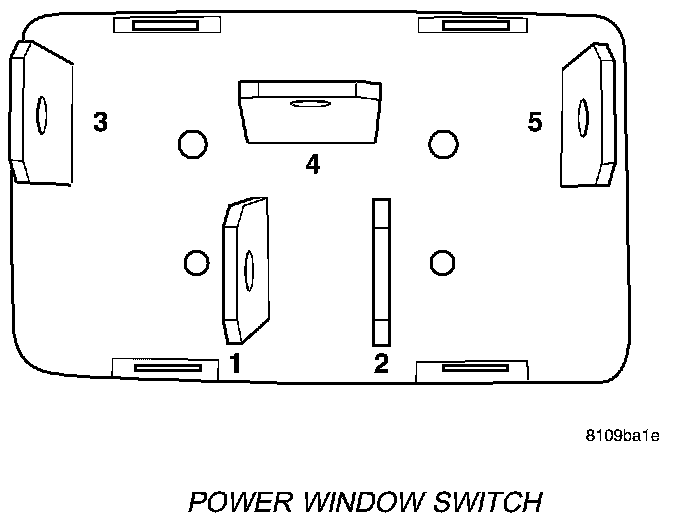

Power Window Switch:

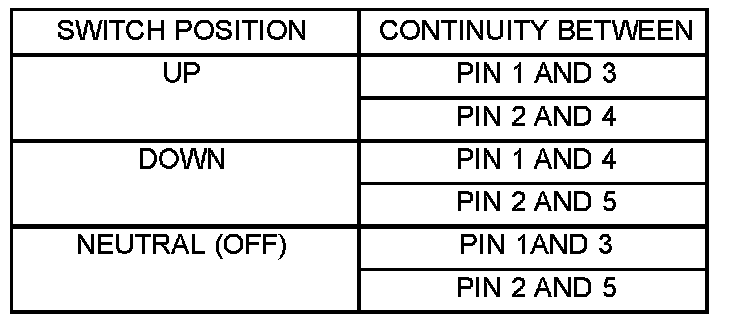

Power Window Switch Continuity Chart:




Test the power window switch continuity. Refer to the Power Window Switch Continuity chart to determine if the continuity is correct in the Off, Up and Down switch positions.
