Front Door Window Glass: Service and Repair

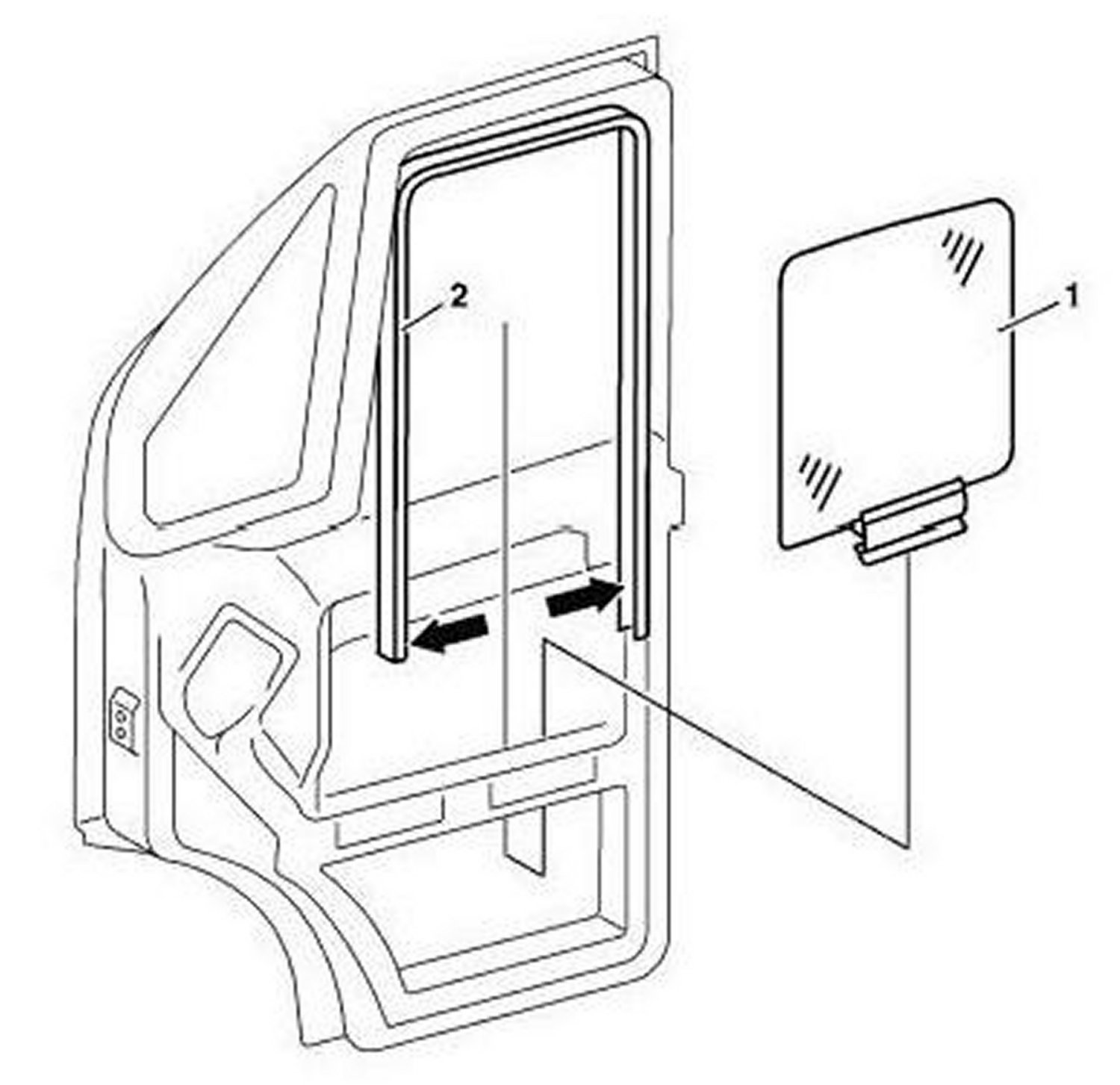

Removing and installing front door window

Removing And Installing Front Door Window:




1. Window
2. Sealing frame

Remove/install

1.1. Remove crank mechanism
1.2. Remove power window motor
2. Carefully lower window (1) down into door, move out of sealing frame (2) on left and right (arrows) and remove
3. Install in the reverse order
