Sensor-Camshaft Position 1/2

Component ID: 448

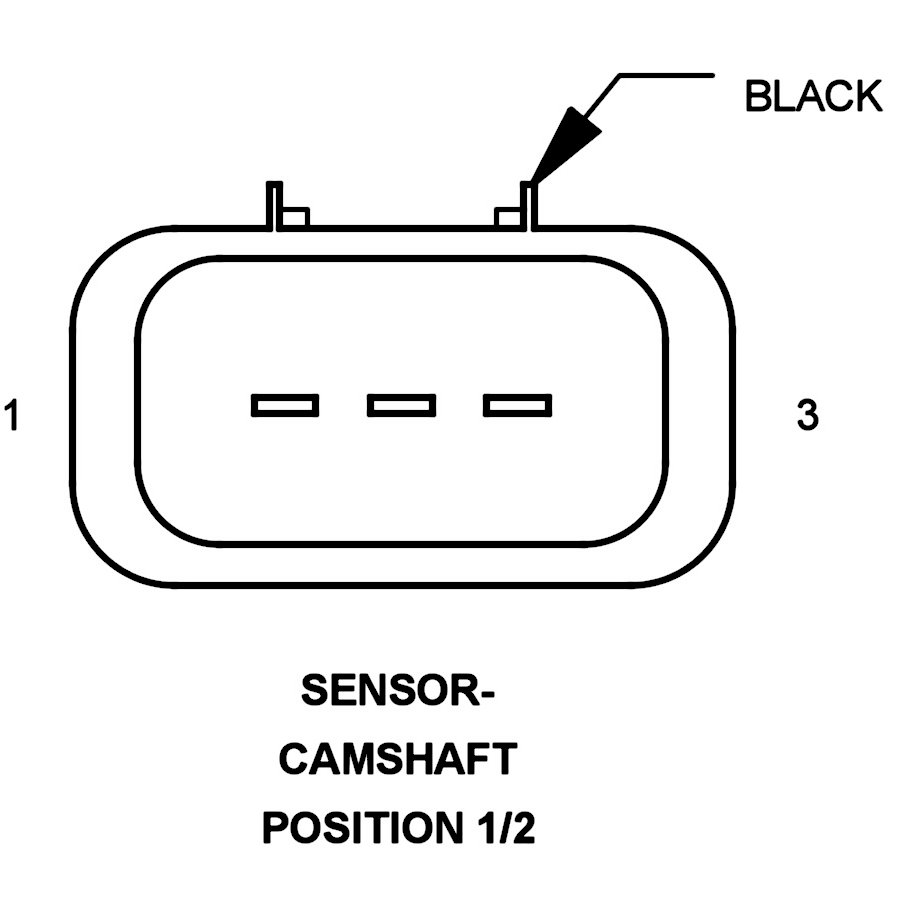

Component : SENSOR-CAMSHAFT POSITION 1/2

Connector:
Name : SENSOR-CAMSHAFT POSITION 1/2
Color : BLACK
# of pins : 3
Gender : FEMALE




Pin Description Circuit
1 SENSOR GROUND U6101 20BR/DG
2 CMP 1/2 SIGNAL 1605 20DG/BK
3 FUSED MAIN RELAY OUTPUT U795 20BK/WT
