Sensor-Camshaft Position

Component ID: 446
Component : SENSOR-CAMSHAFT POSITION

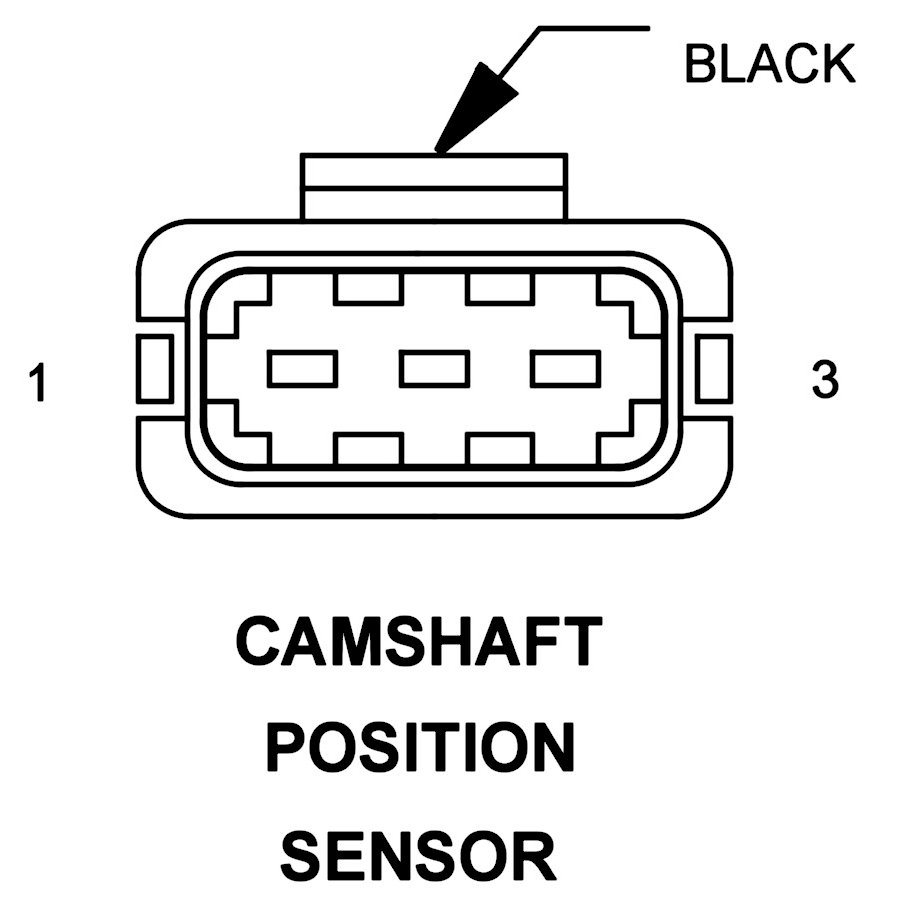

Connector:
Name : SENSOR-CAMSHAFT POSITION
Color : BLACK
# of pins : 3
Qualifier : (DIESEL)




Pin Description Circuit
1 CAMSHAFT POSITION SENSOR GROUND 1302 20BR/YL
2 CAMSHAFT POSITION SENSOR SIGNAL 1304 20YL/GY
3 CAMSHAFT POSITION SENSOR 5 VOLT SUPPLY 1303 20RD/YL
