Installation






INSTALLATION

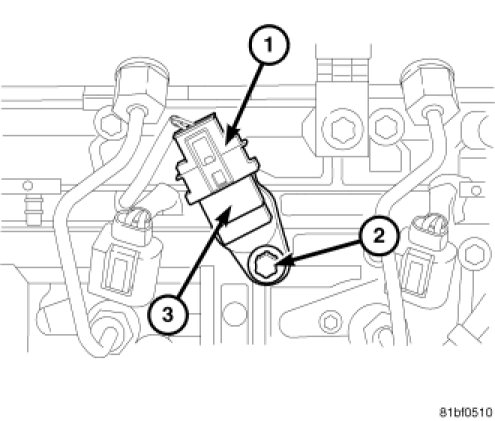

1. Install camshaft position sensor (3) and tighten camshaft position sensor bolt (2) to 8 Nm (71 in.lbs.).




2. Reconnect the camshaft position sensor harness connector (1).
3. Install engine cover.
4. Reconnect negative battery cable.
