Removal

REMOVAL

1. Disconnect the negative battery cable.
2. Raise and support the vehicle.

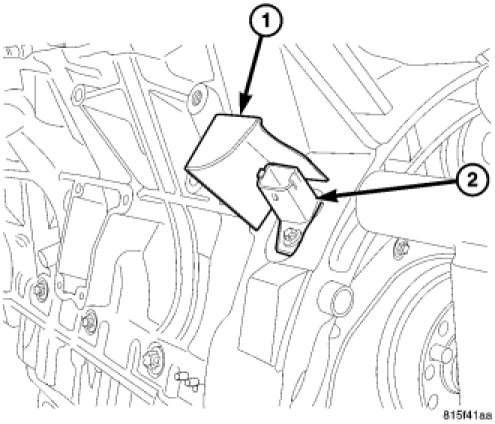

3. Remove the crankshaft position sensor heat shield (1).
4. Disconnect the crankshaft position sensor wiring harness connector.
5. Remove the crankshaft position sensor bolt and crankshaft position sensor (2).
