Sensor-Exhaust Temperature 1/1

Component ID: 459

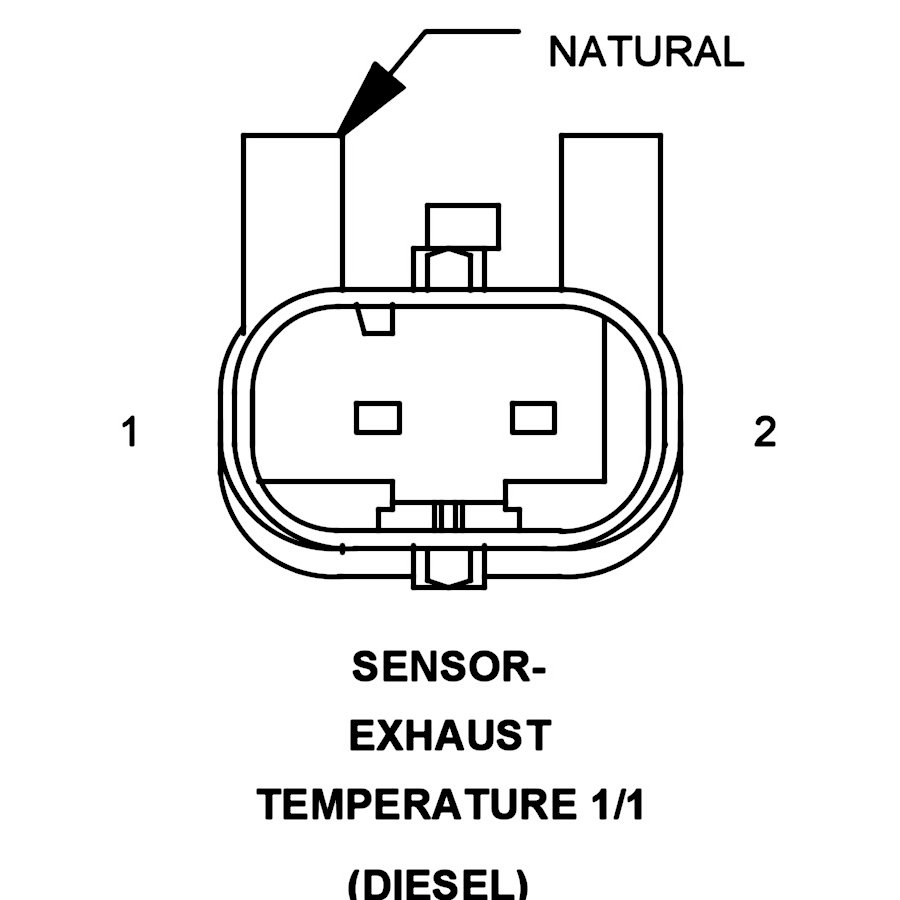

Component : SENSOR-EXHAUST TEMPERATURE 1/1

Connector:
Name : SENSOR-EXHAUST TEMPERATURE 1/1
Color : NATURAL
# of pins : 2
Qualifier : (DIESEL)
Gender : FEMALE




Pin Description Circuit
1 EXHAUST GAS TEMPERATURE 1/1 SIGNAL 4131 20OR/GY
2 EXHAUST GAS TEMPERATURE 1/1 GROUND 4132 20GY/OR
