Sensor-Exhaust Temperature 1/2


Component ID: 460
Component : SENSOR-EXHAUST TEMPERATURE 1/2

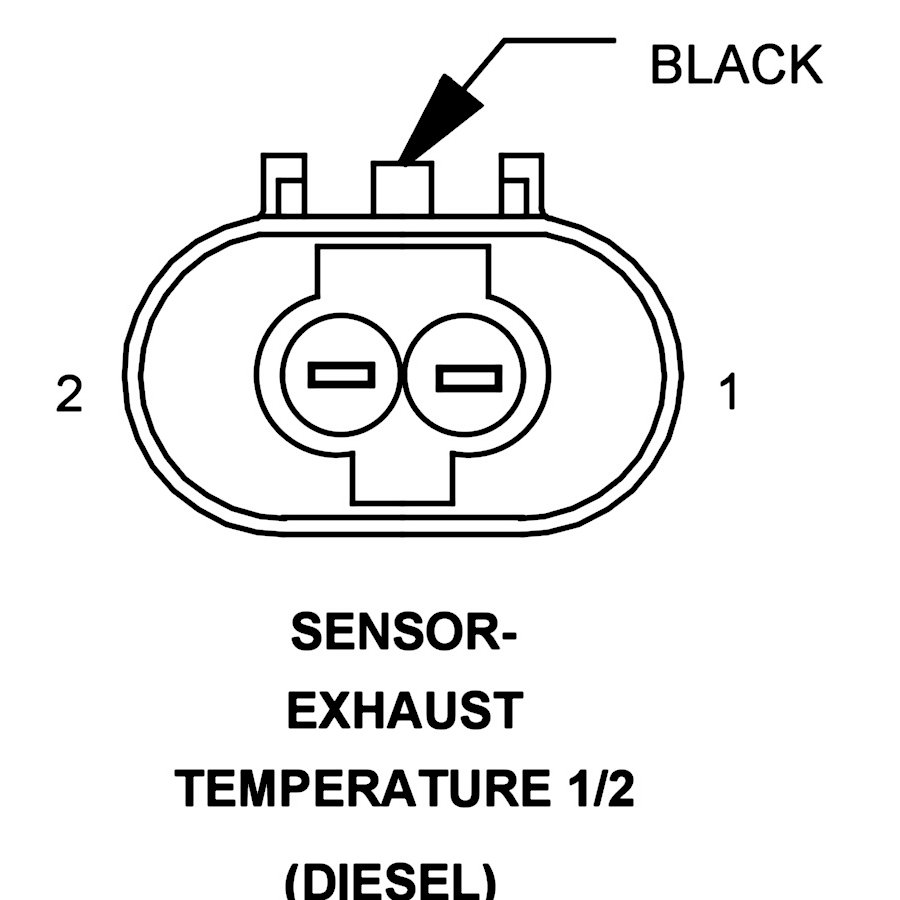

Connector:
Name : SENSOR-EXHAUST TEMPERATURE 1/2
Color : BLACK
# of pins : 2
Qualifier : (DIESEL)




Pin Description Circuit
1 EXHAUST GAS TEMPERATURE 1/2 GROUND 421 20VT/RD
2 EXHAUST GAS TEMPERATURE 1/2 SIGNAL 422 20BR/VT
