Oil Pressure Sensor: Diagrams

Component ID: 478

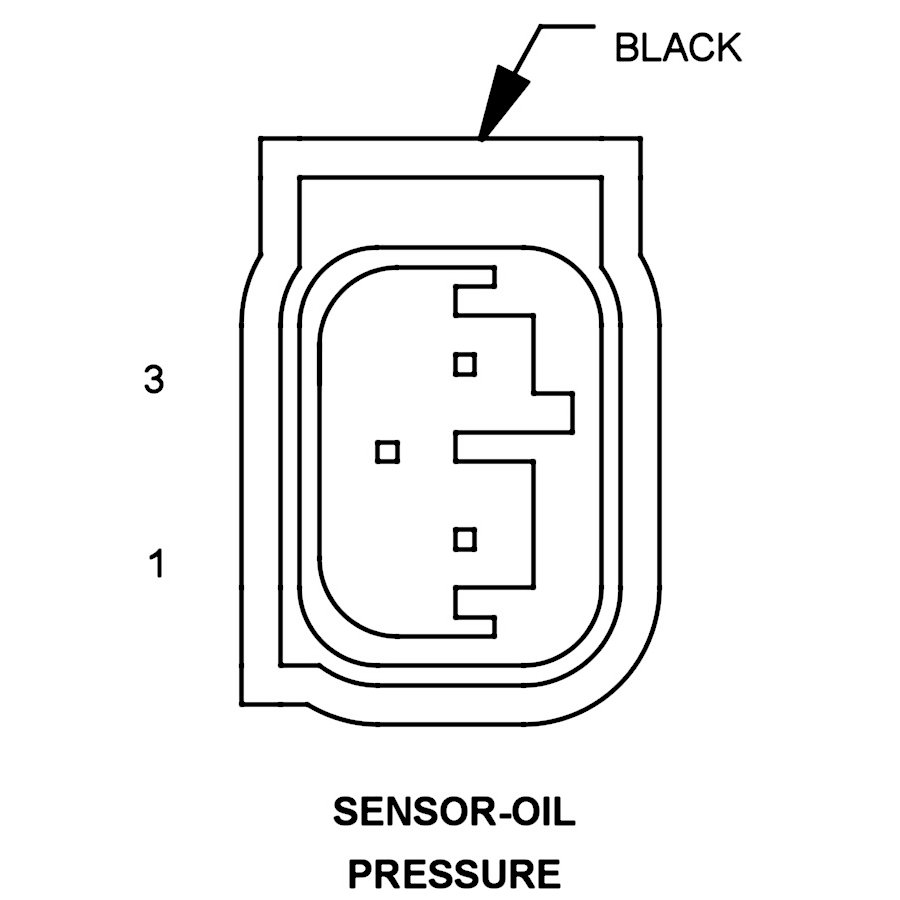

Component : SENSOR-OIL PRESSURE

Connector:
Name : SENSOR-OIL PRESSURE
Color : BLACK
# of pins : 3
Gender : FEMALE




Pin Description Circuit
1 5 VOLT SUPPLY U778 20WT/RD
2 SENSOR GROUND U6102 20BR/DB
3 OIL PRESSURE SIGNAL 1615 20DB/YL
