System Specifications






SPECIFICATIONS - NAG1 AUTOMATIC TRANSMISSION

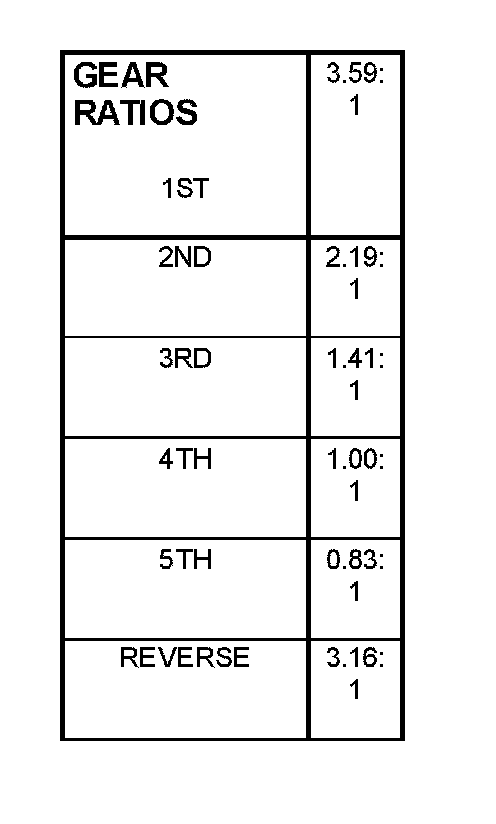

Gear Ratios:

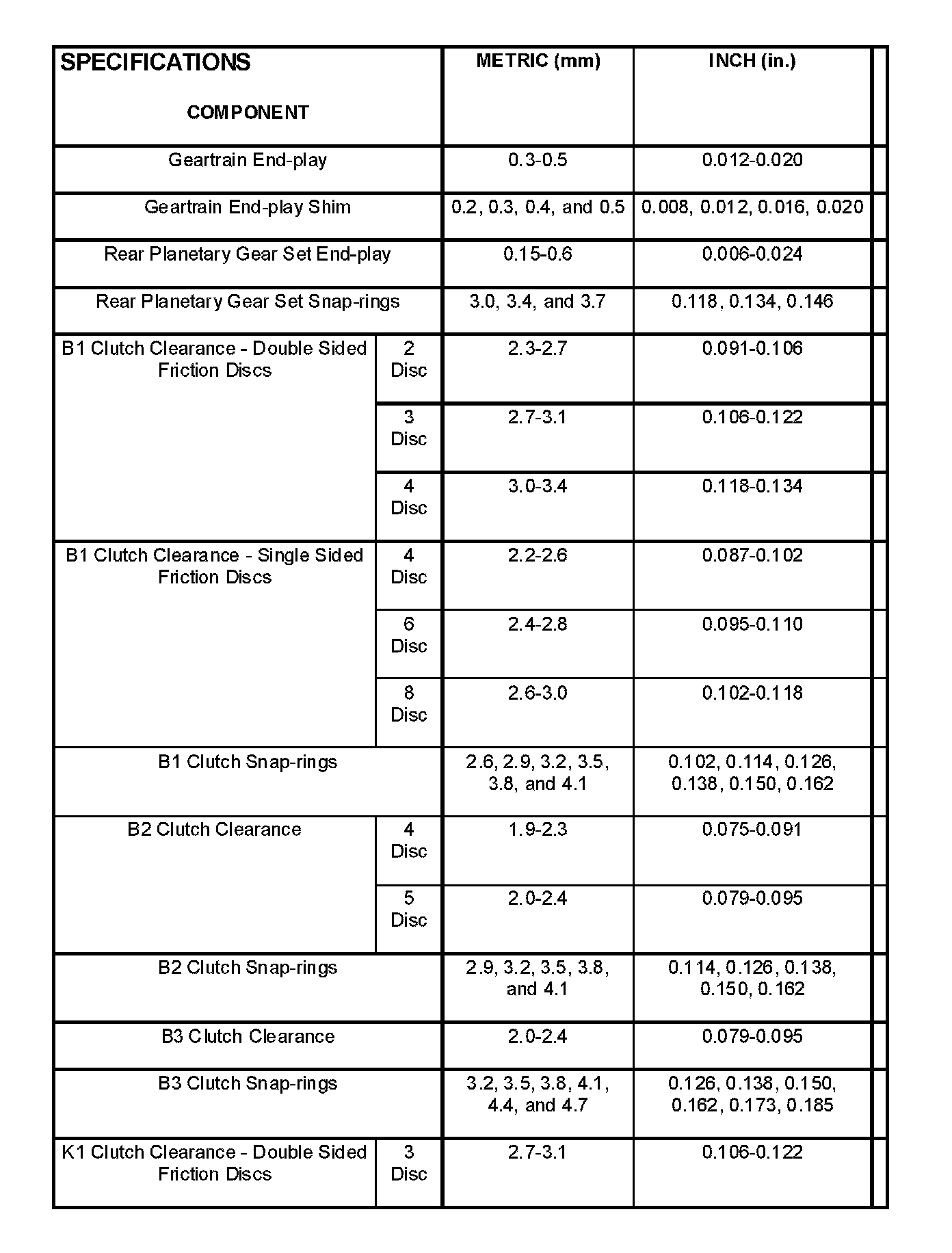

Specifications (Part 1):

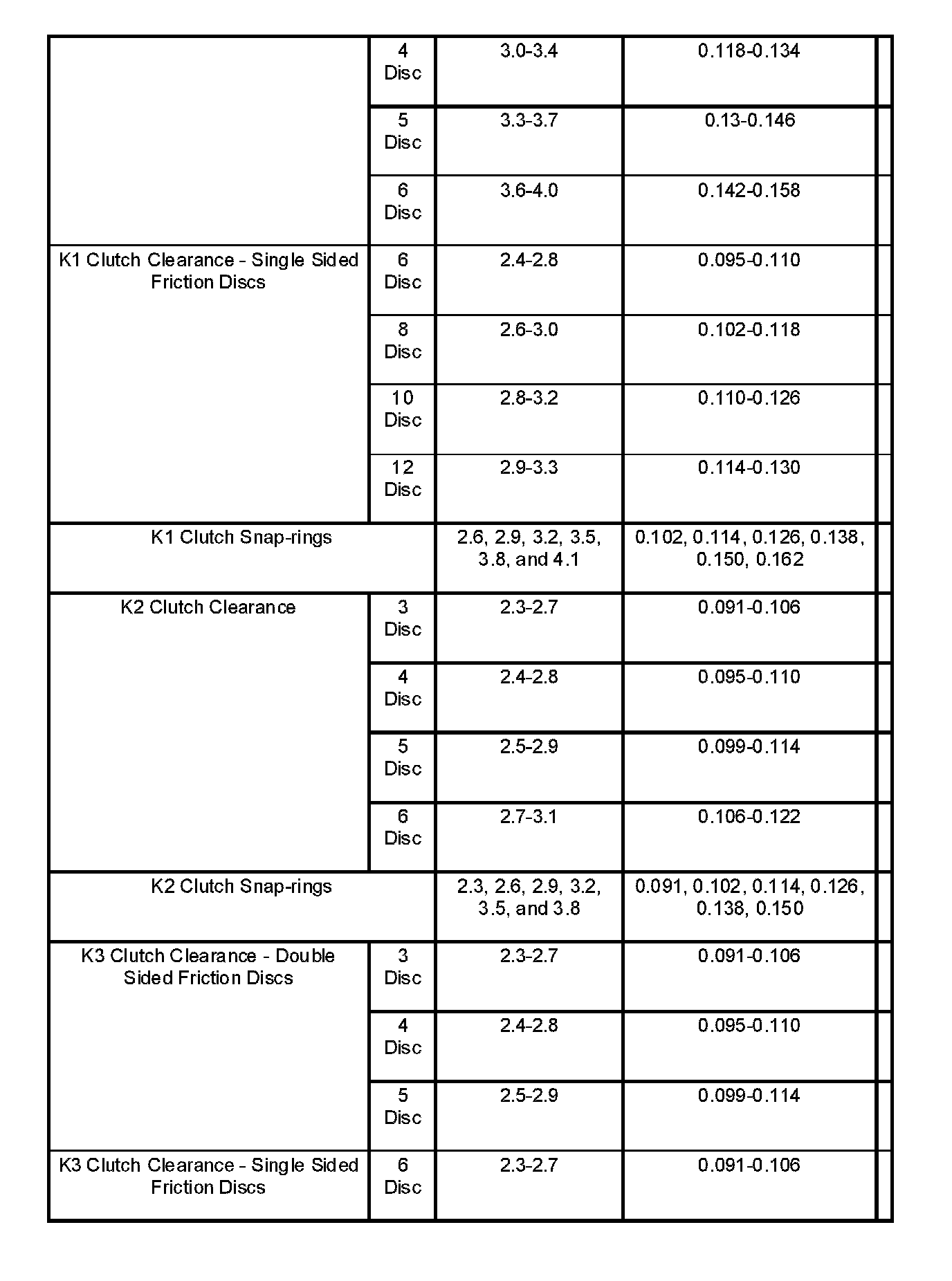

Specifications (Part 2):

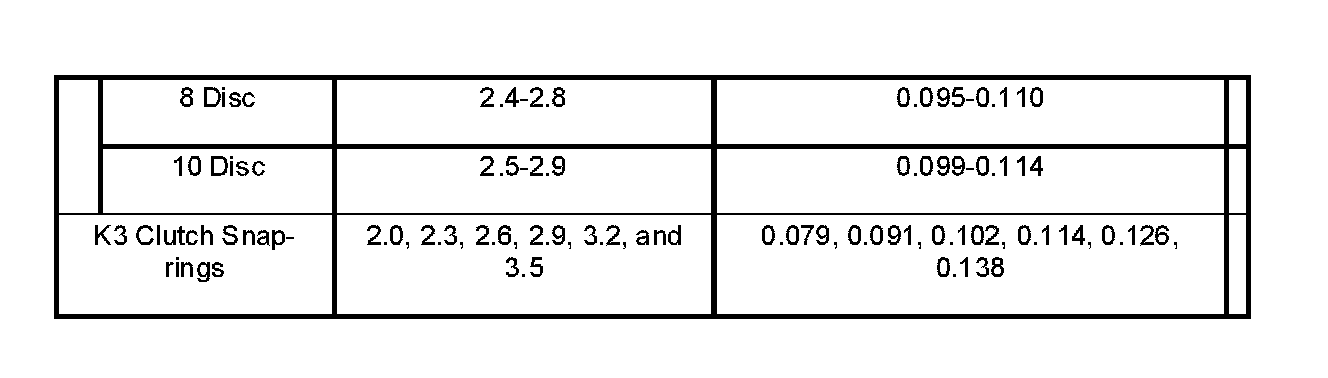

Specifications (Part 3):

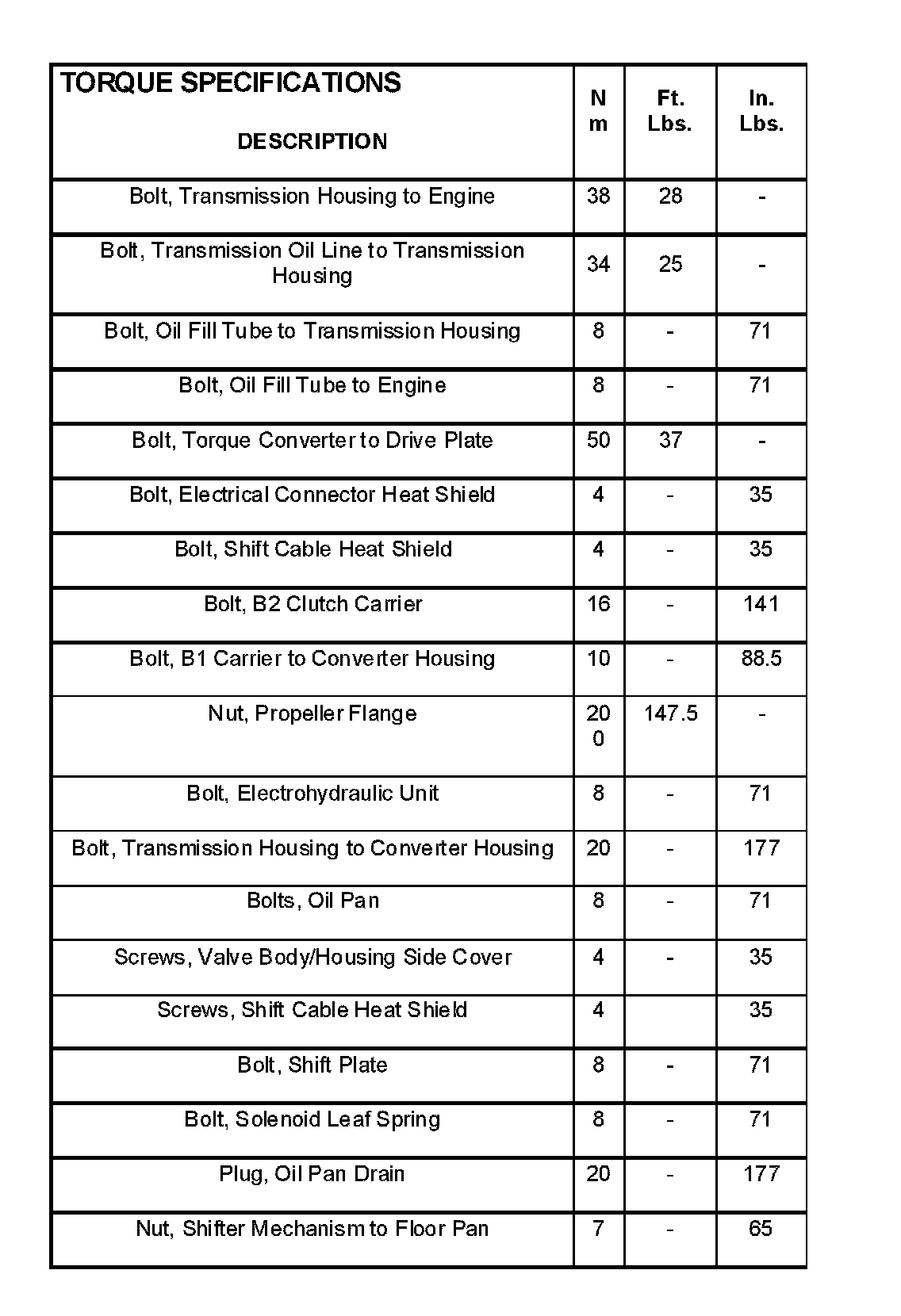

Torque Specifications:
