Installation






INSTALLATION









1. Install the weatherstrip seal on the window glass. Verify that the glass is seated in the groove around the edge of the seal.
2. Insert an installation cord in the weatherstrip seal inner groove.

NOTE: Use mineral spirits as a lubricant to aid seal installation in the window opening.

3. Position the glass and seal in the window opening.

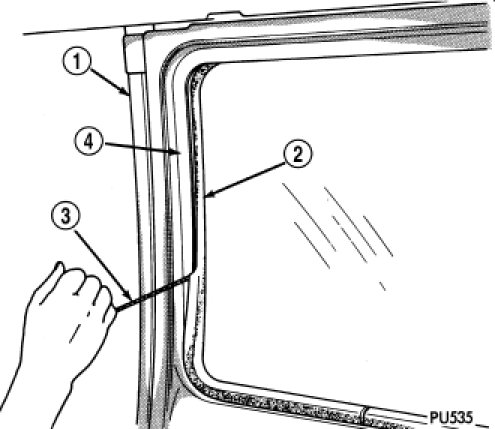

4. Pull the installation cord outward and force the seal lip over the panel flange around the edge of the opening.
5. Seat the seal inner lip on the panel flange. Press against the lip around the edge of the seal.

NOTE: Remove any mineral spirits with a clean cloth after glass installation.

6. Verify that the seal is seated in the window opening.
7. Test the window for water leaks.
