Removal






REMOVAL

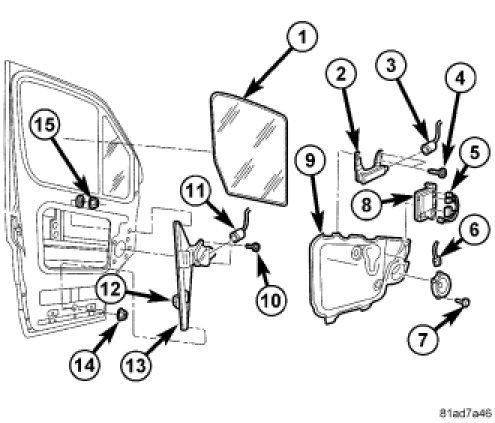

1. Move the glass (1) into the down position.
2. Remove the trim panel. Refer to Trim Panel.
3. Remove the bolts (4) and remove the keyless entry antenna (2). Disconnect the electrical connector (3).
4. Disconnect the electrical connectors (5), un-clip and remove the control unit (8).
5. Disconnect the electrical connector (43), remove the screws (42) and remove the speaker (45).
6. Disconnect the electrical connector (6), remove the screws (7) and remove the speaker.
7. Remove the water shield. Refer to Front Door Panel.
8. Loosen the regulator lift plate screws (12) and secure the glass in the up position using tape or other suitable device.
9. Disconnect the electrical connector (11).
10. Remove the regulator bolts (10) and nuts (14 and 15).
11. Remove the regulator assembly (13).
