Brake Fluid Level Sensor/Switch

Component ID: 589
Component : SWITCH-BRAKE FLUID LEVEL

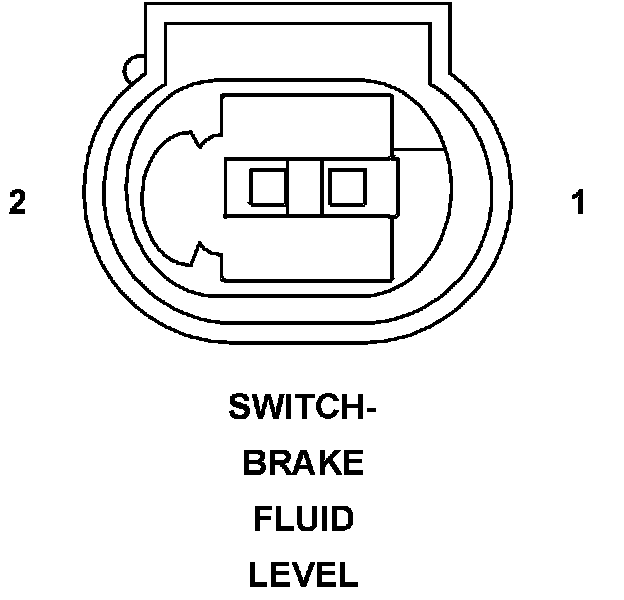

Connector:
Name : SWITCH-BRAKE FLUID LEVEL
Color :
# of pins : 2




Pin Circuit Description
1 592 20DG/DB BRAKE FLUID LEVEL SWITCH RETURN
2 593 20DG/WT BRAKE FLUID LEVEL SWITCH SENSE
