Lateral Accelerometer

Component ID: 498

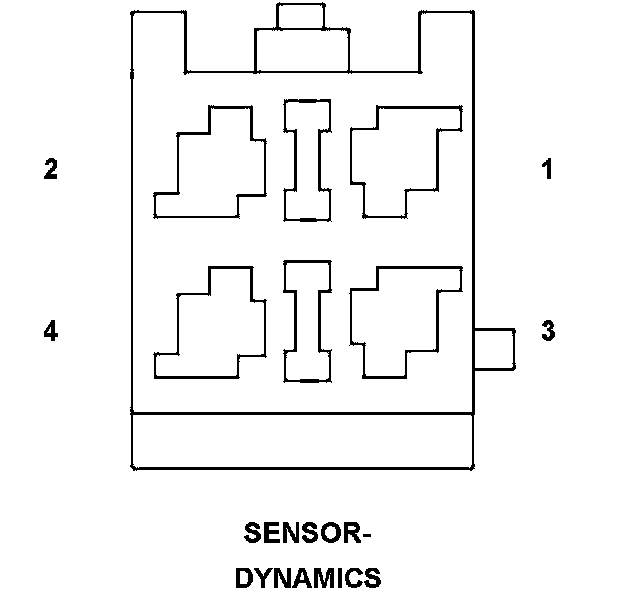

Component : SENSOR-DYNAMICS

Connector:
Name : SENSOR-DYNAMICS
Color :
# of pins : 4
Gender : FEMALE




Pin Circuit Description
1 261 20BR GROUND
2 18 20DG CAN C BUS (-)
3 17 20DG/WT CAN C BUS (+)
4 U371 20BK/RD FUSED IGNITION SWITCH OUTPUT (RUN)
