Turbo Boost Sensor

Component ID: 487

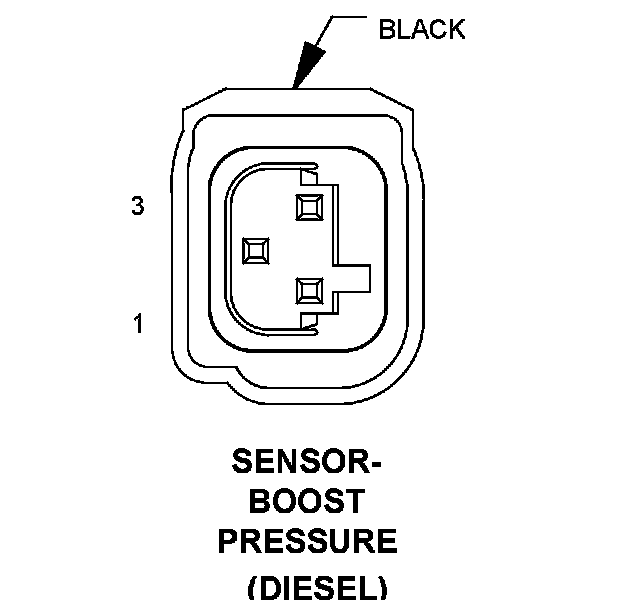

Component : SENSOR-BOOST PRESSURE

Connector:
Name : SENSOR-BOOST PRESSURE
Color : BLACK
# of pins : 3
Qualifier : (DIESEL)




Pin Circuit Description
1 1326 20BR BOOST PRESSURE SENSOR GROUND
2 1327 20YL/DG BOOST PRESSURE SENSOR SIGNAL
3 1240 20PK/YL BOOST PRESSURE SENSOR 5 VOLT SUPPLY
