Coolant Temperature Sensor/Switch (For Computer): Diagrams

Component ID: 501
Component : SENSOR-ENGINE COOLANT TEMPERATURE

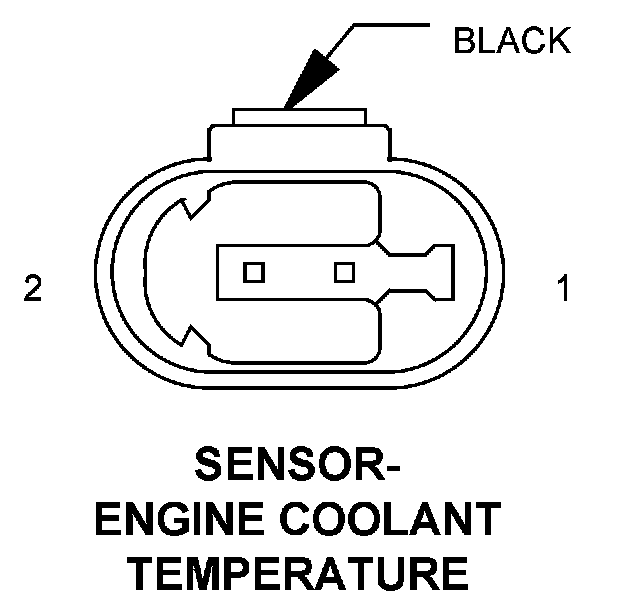

Connector:
Name : SENSOR-ENGINE COOLANT TEMPERATURE
Color : BLACK
# of pins : 2




Pin Circuit Description
1 1295 20GY/DG ENGINE COOLANT TEMPERATURE SENSOR GROUND
Pin Circuit Description
1 U6102 20BR/DB SENSOR GROUND
2 1294 20DG/RD ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
2 1600 20DG/YL ECT SIGNAL
