Data Link Connector: Diagrams

Component ID: 140

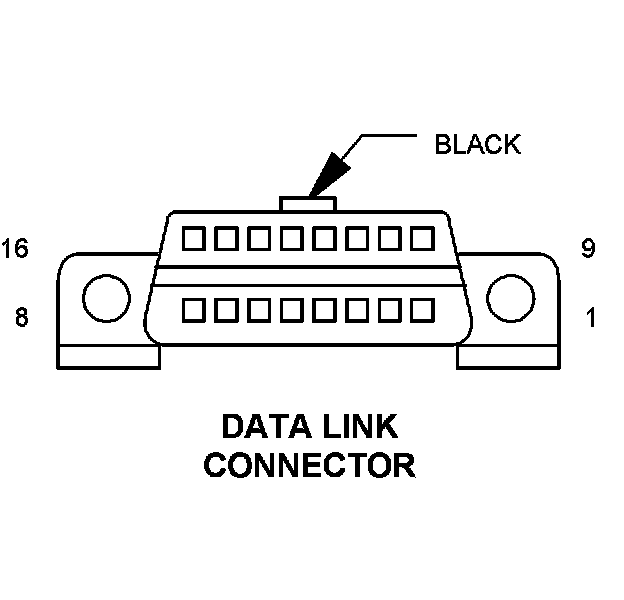

Component : DATA LINK CONNECTOR

Connector:
Name : DATA LINK CONNECTOR
Color : BLACK
# of pins : 16




Pin Circuit Description
1 - -
2 - -
3 1261 20WT/DG ECM
3 1564 20WT/DG ECM
4 269 20BR GROUND
5 270 20BR GROUND
6 835 20VT/WT DIAGNOSTIC CAN C (+)
7 - -
8 271 20BK/PK FUSED IGNITION SWITCH OUTPUT (RUN-START)
9 - -
10 - -
11 - -
12 - -
13 - -
14 836 20VT DIAGNOSTIC CAN C (-)
15 - -
16 272 20RD FUSED B (+)
