System Specifications







SPECIFICATIONS - NAG1 AUTOMATIC TRANSMISSION

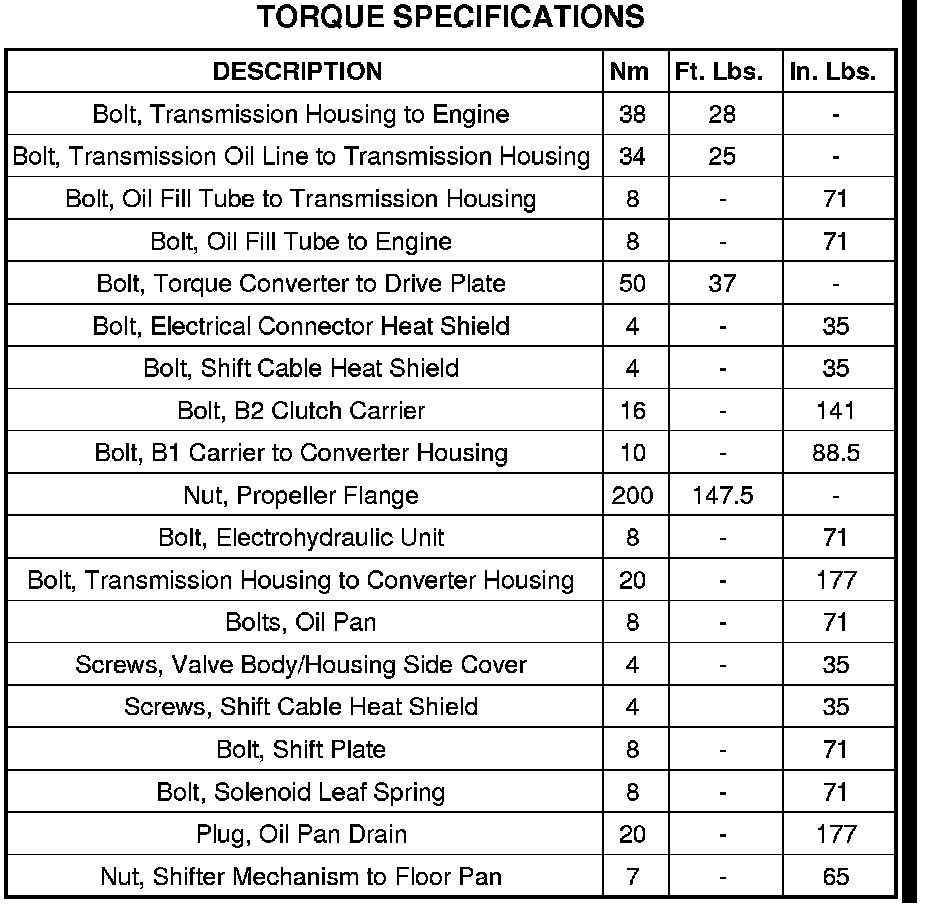

TORQUE SPECIFICATIONS






FLEX PLATE TORQUE AND SEQUENCE

Tighten the flex plate fasteners in a cross sequence to 44 Nm (32.5 ft. lbs.).
