Programmable Special Module C1 (HLS) 21 Way

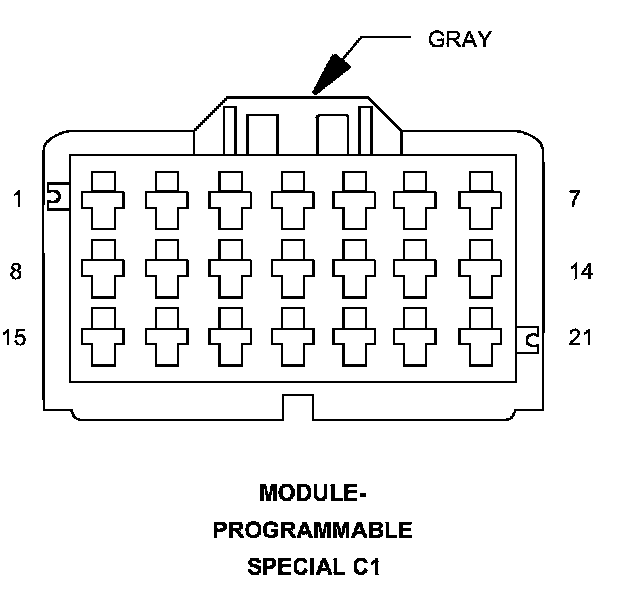

Connector C1 - (HLS) 21 WAY

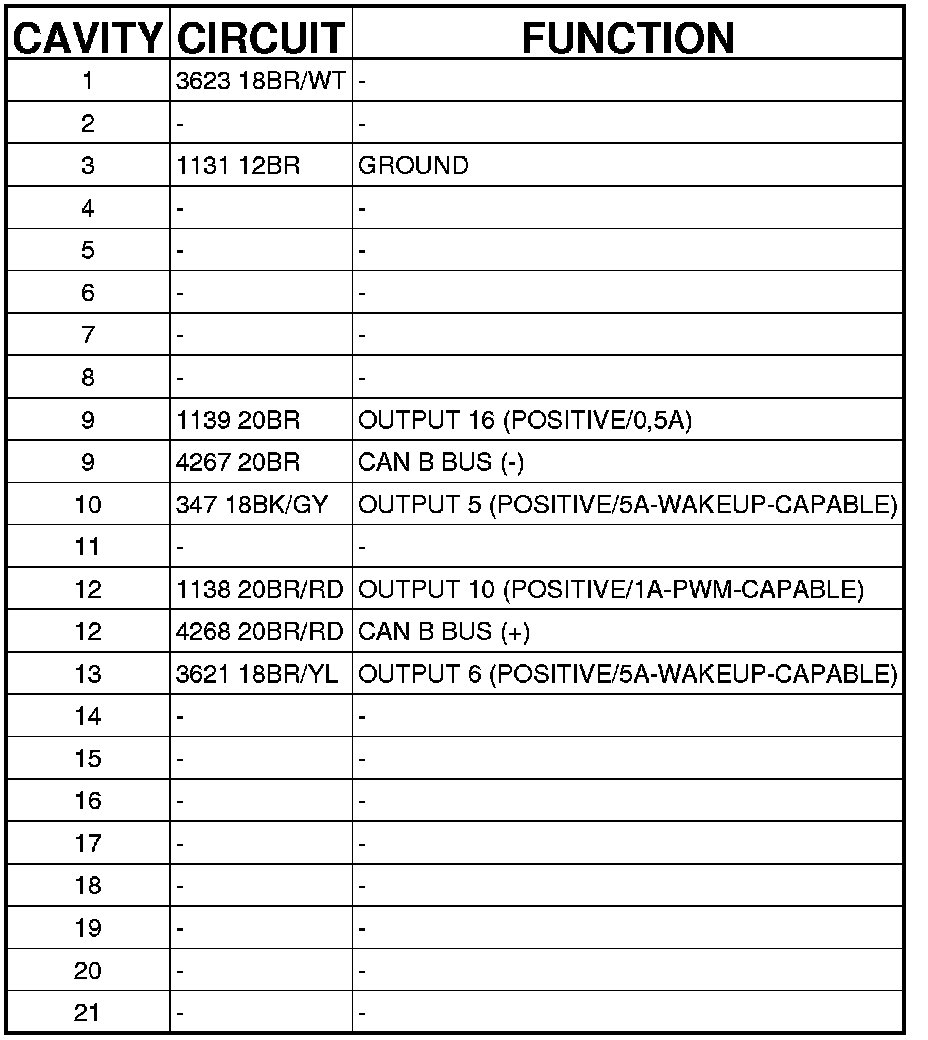

MODULE-PROGRAMMABLE SPECIAL - (HLS) 21 WAY
