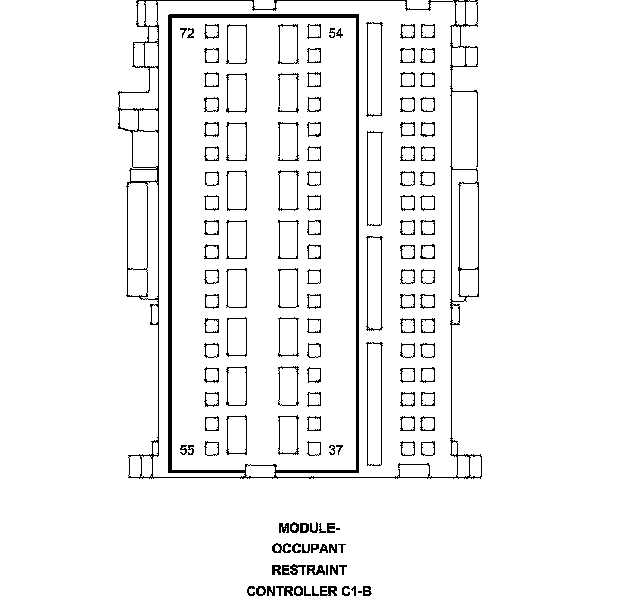

Module-Occupant Restraint Controller C1-B

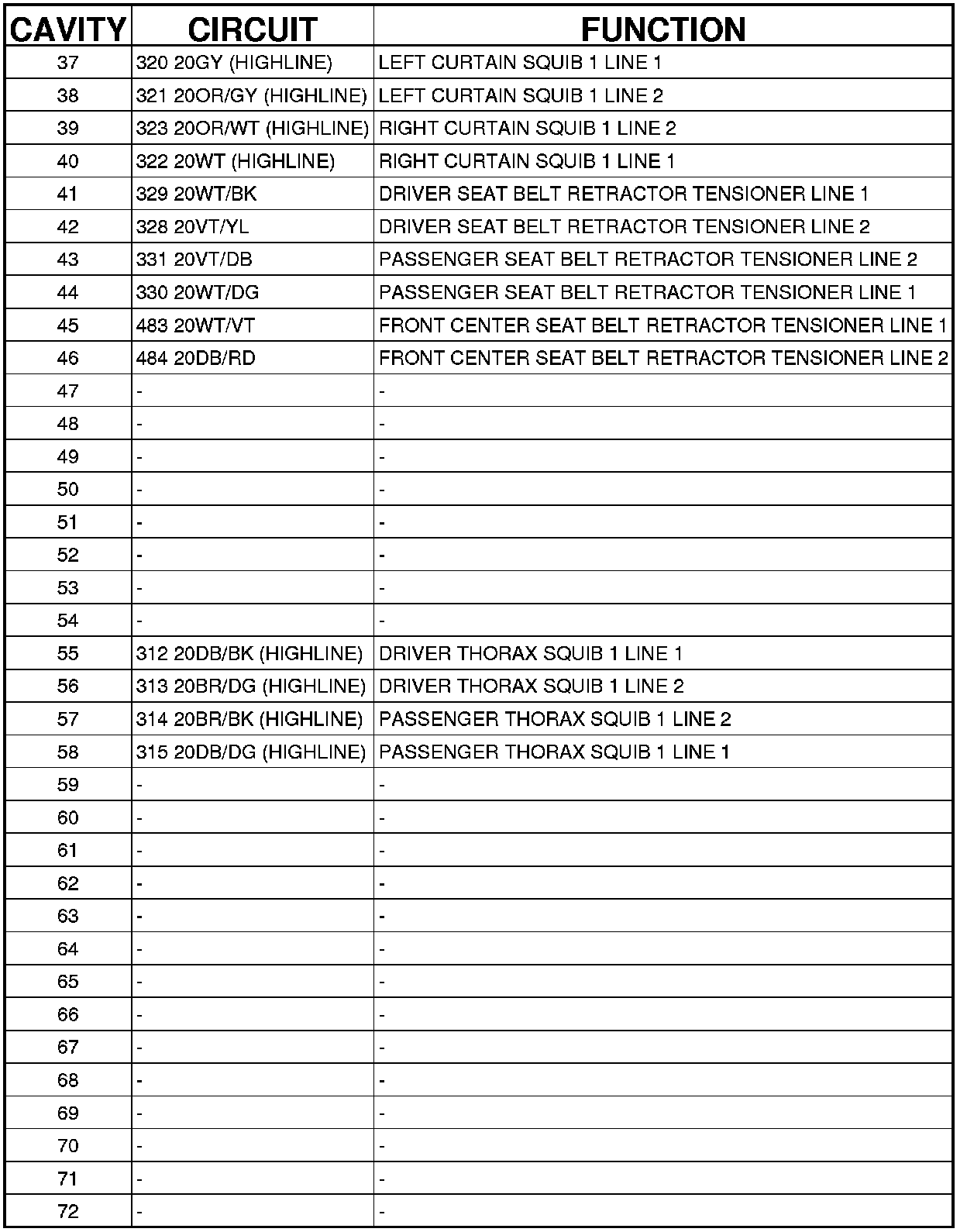

Connector - (HLS) 36 WAY
MODULE-OCCUPANT RESTRAINT CONTROLLER - (HLS) 36 WAY
