Engine Control Module C2 (Diesel) (HLS) 58 Way

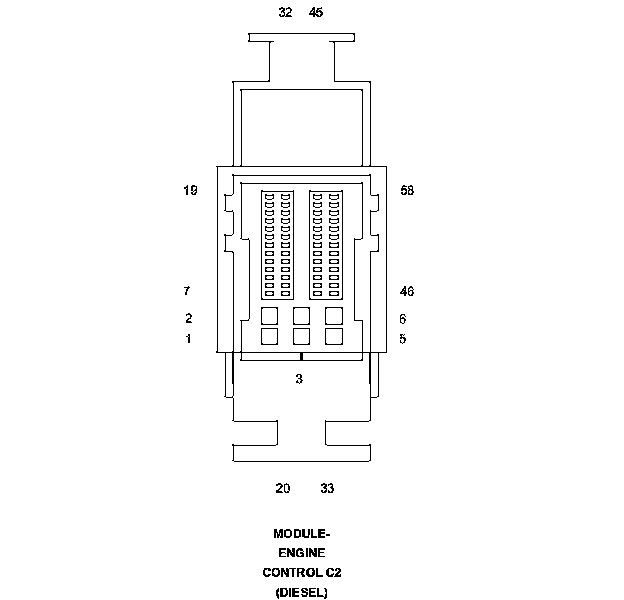

Connector C2 (DIESEL) - (HLS) 58 WAY

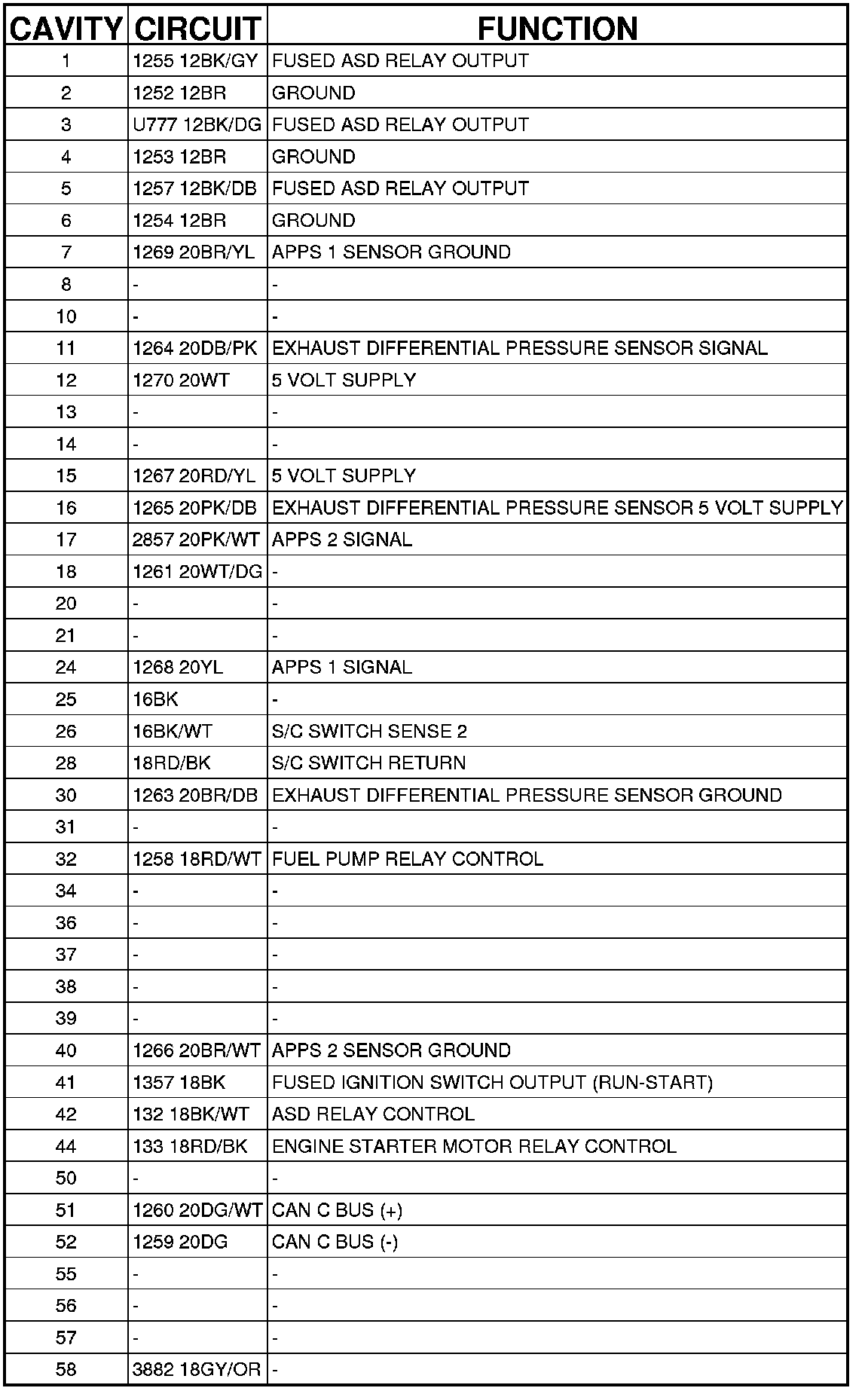

MODULE-ENGINE CONTROL (DIESEL) - (HLS) 58 WAY
