Fuel Level Sensor

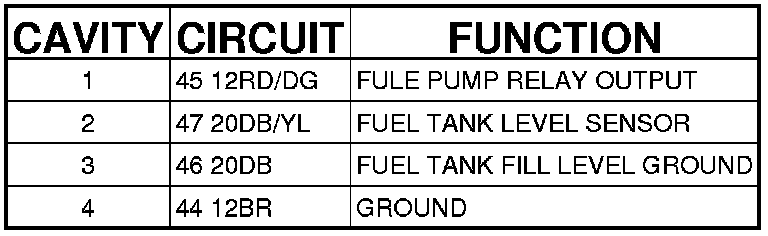

Connector (DIESEL) - (LU TANK) 4 WAY




MODULE-FUEL PUMP (DIESEL) - (LU TANK) 4 WAY
