Steering Control Module C2 (CLS) 14 Way

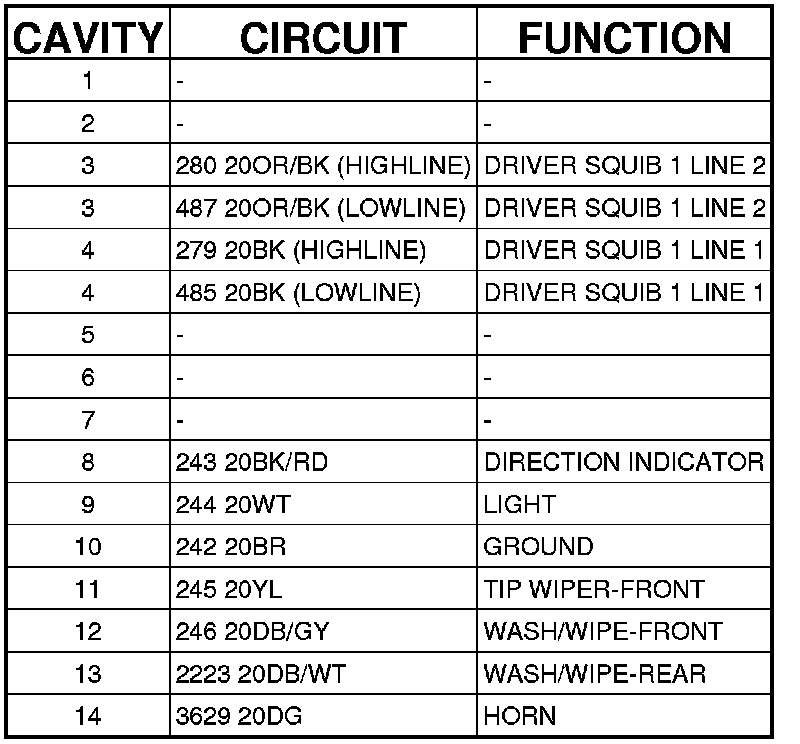

Connector C2 - (CLS) 14 WAY

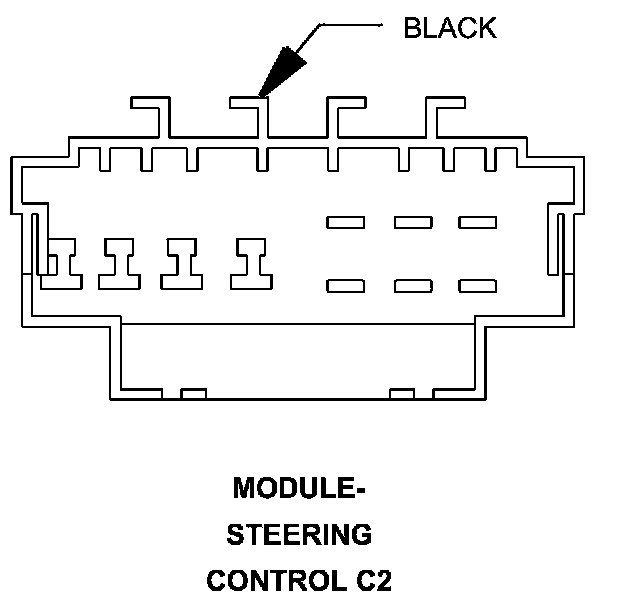

MODULE-STEERING CONTROL - (CLS) 14 WAY
