Coolant Temperature Sensor/Switch (For Computer): Diagrams

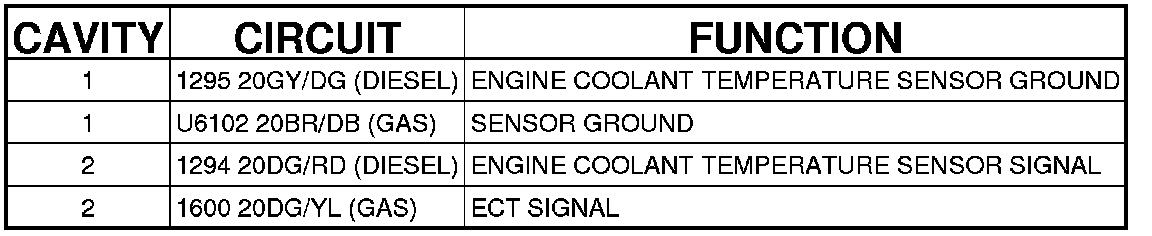

Connector - (M272/OM642) 2 WAY

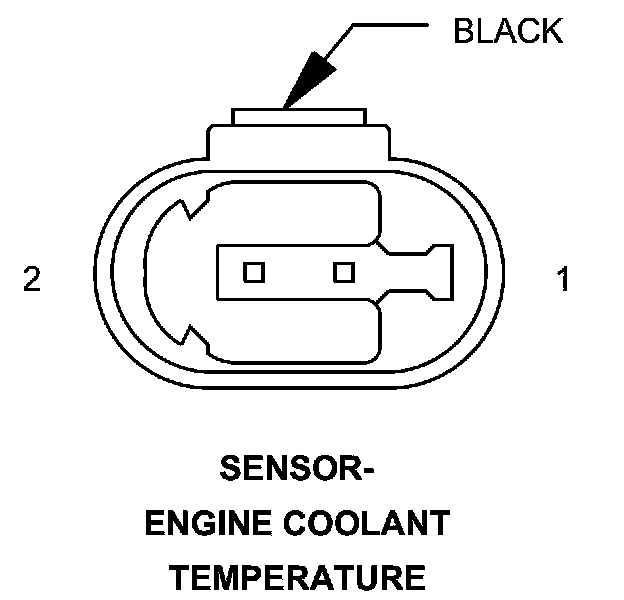

SENSOR-ENGINE COOLANT TEMPERATURE - (M272/OM642) 2 WAY
