Fuel Level Sending Unit and Sensor - Installation

INSTALLATION










1. Noting their previous positions, connect wires from 2-wire harness into its connector.
2. Plug 2-wire harness connector into pump module electrical connector.

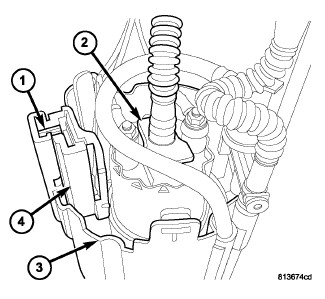

3. Position sending unit (4) to tracks on fuel pump module. Slide and snap into place.
4. Install fuel pump module.Fuel Pump Module - Installation
