Code 13 - O2 Sensor CKT

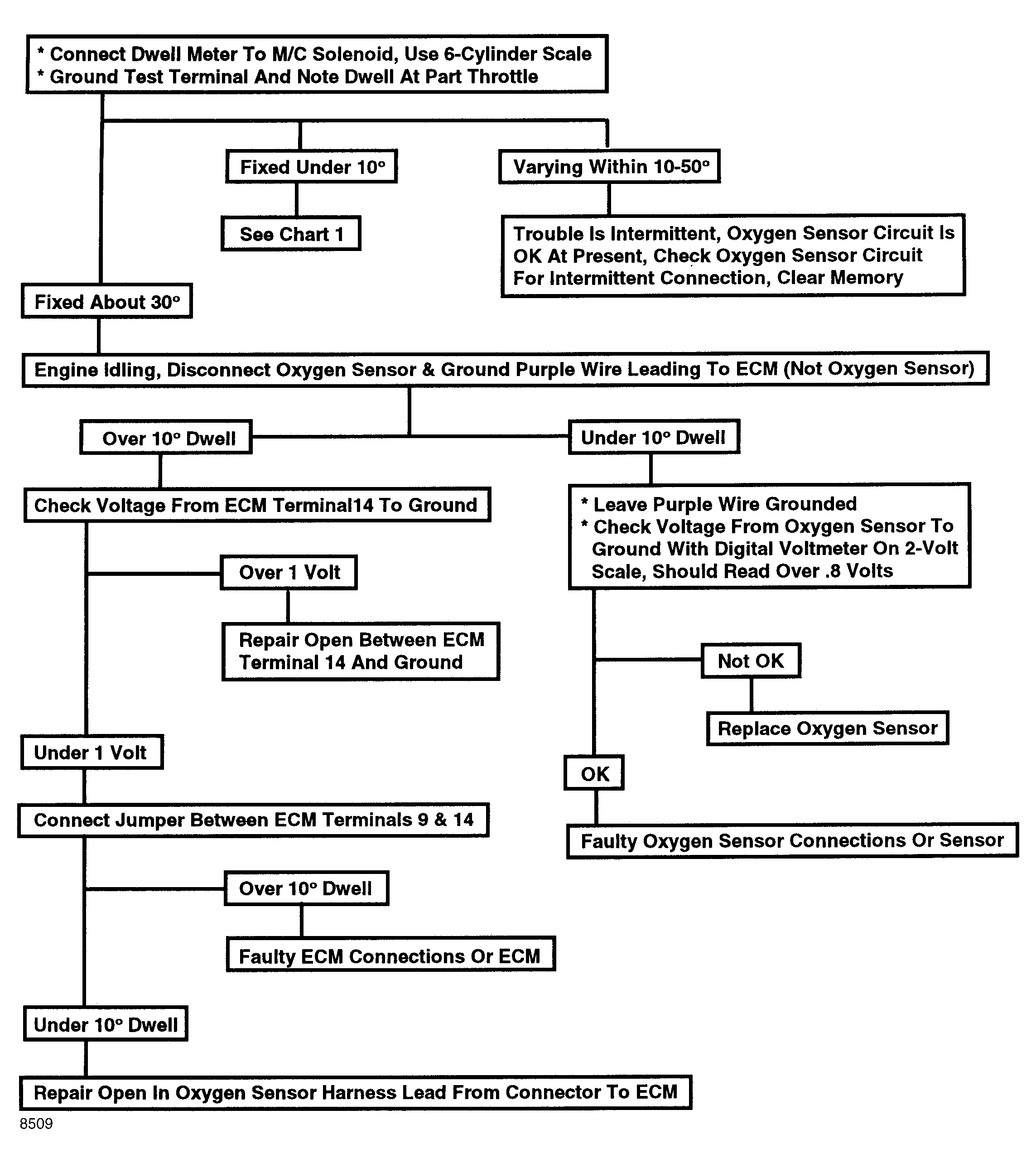

Fig 1: Flow Chart, Code 13 - Oxygen (O2) Sensor Circuit
G8509

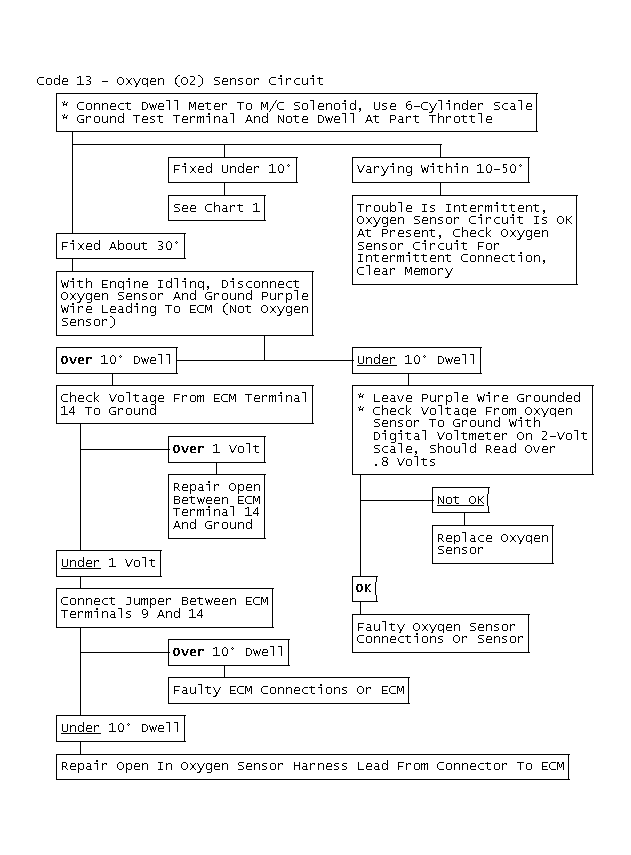

Fig 2: Flow Chart - Code 13 - Oxygen (O2) Sensor Circuit
GB0048236
