Won't Flash Code 12, (Remote Lamp Driver In Harness)

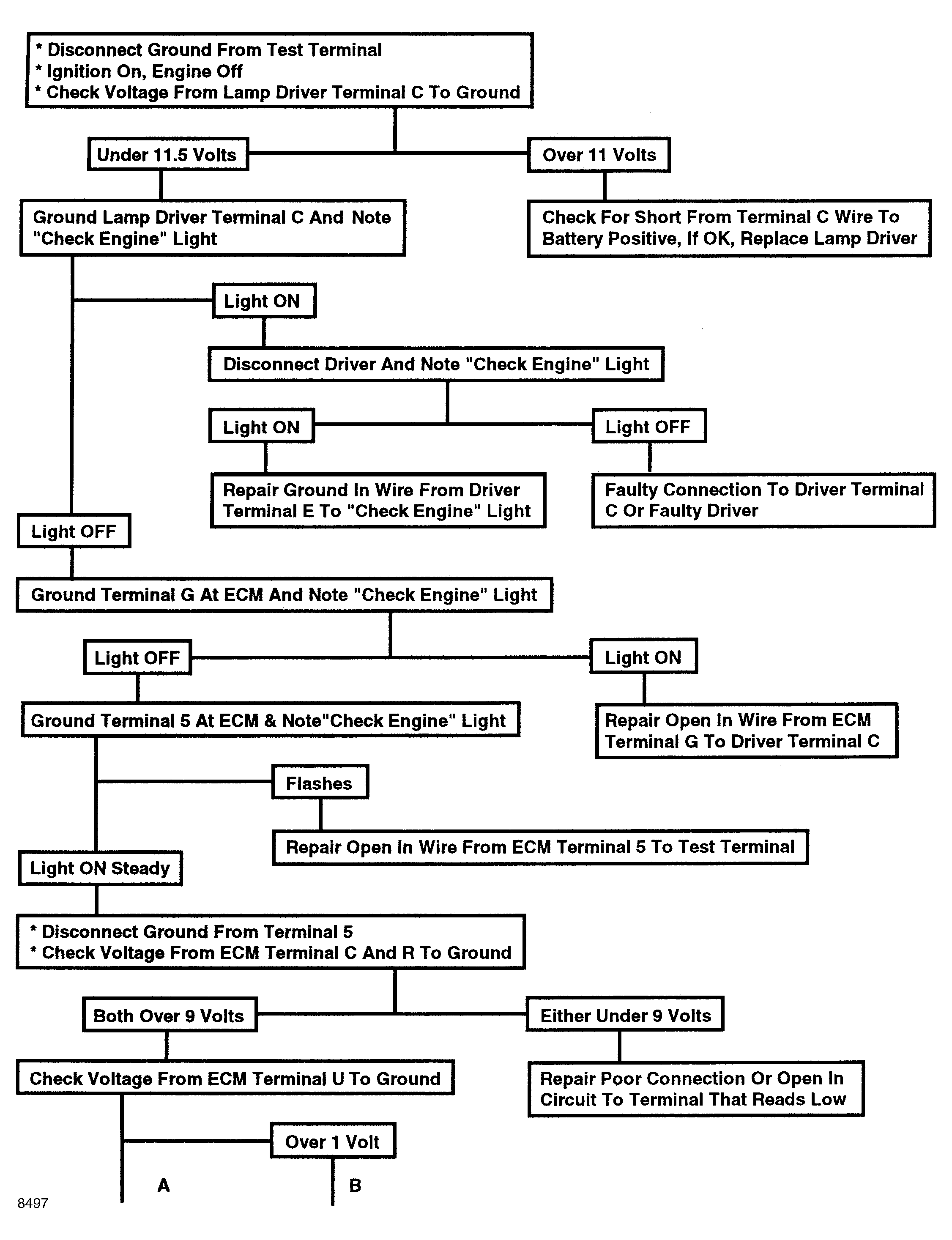

Fig 1: Flow Chart - Won't Flash Code 12, (Remote Lamp Driver In Harness)
G8497

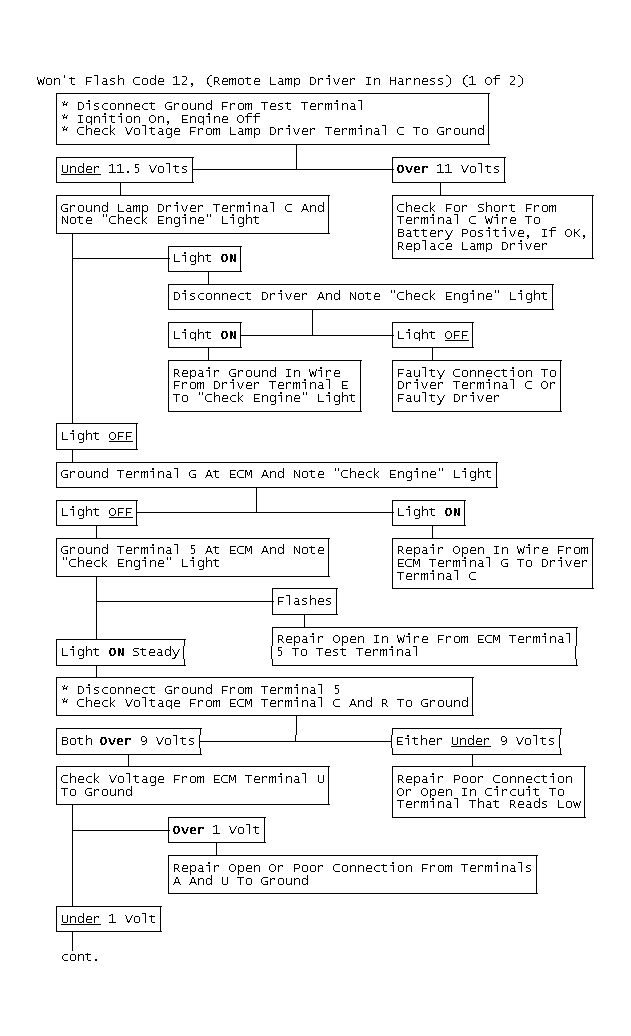

Fig 2: Flow Chart - Won't Flash Code 12, (Remote Lamp Driver In Harness) (1 Of 2)
GB0048222

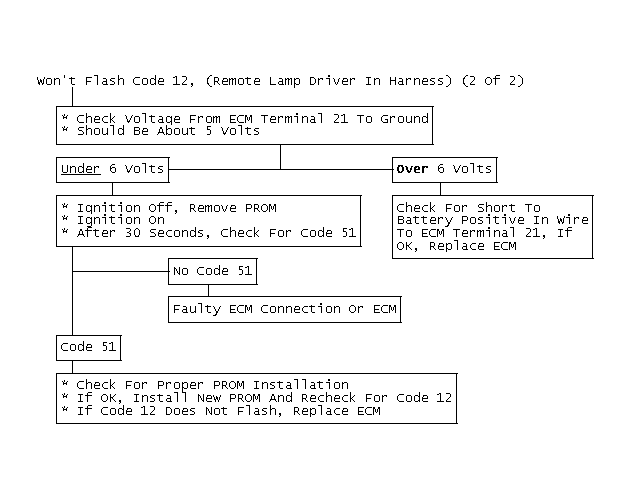

Fig 3: Flow Chart - Won't Flash Code 12, (Remote Lamp Driver In Harness) (2 Of 2)
GB0048223
