Idle Speed Control Check

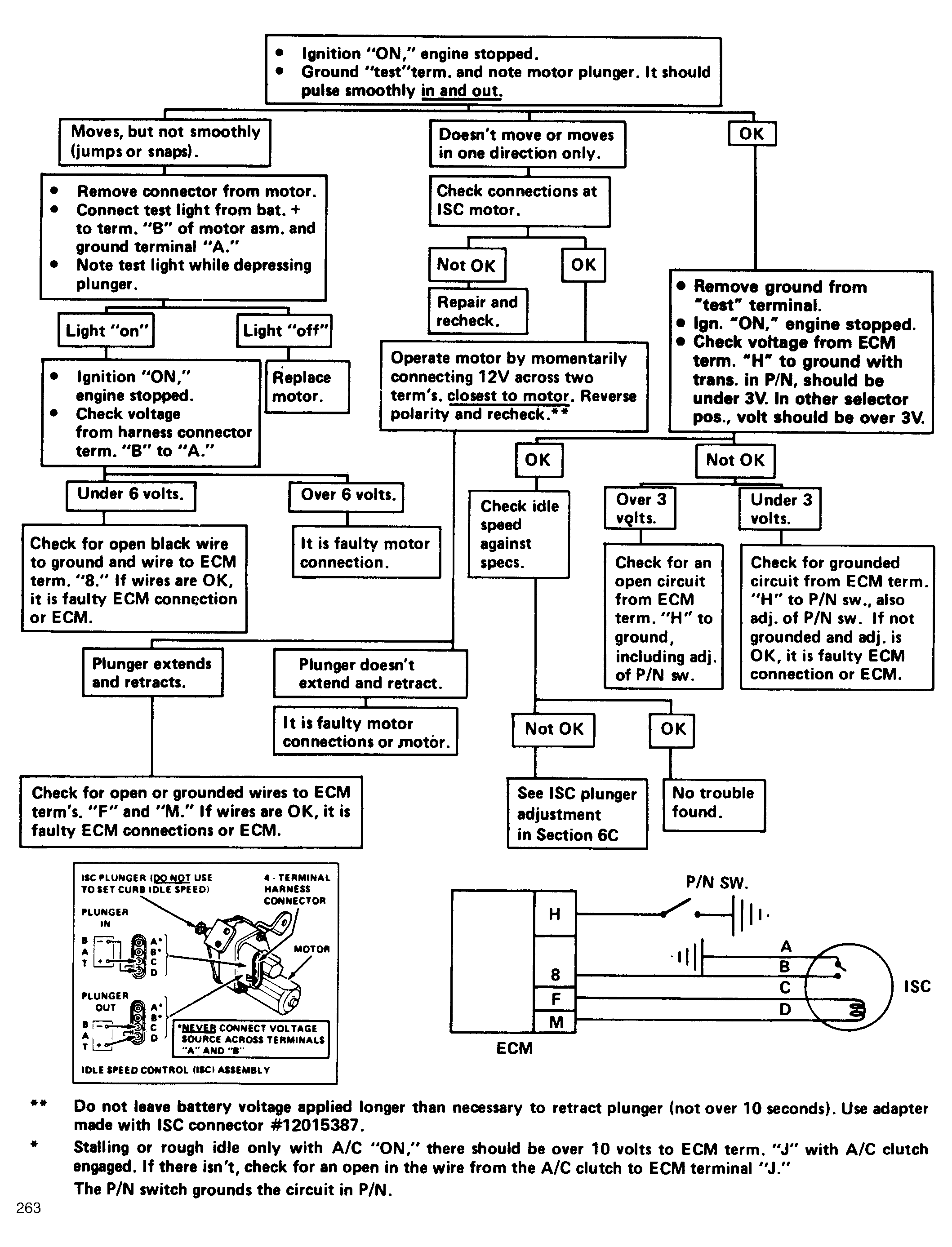

Fig 1: Flow Chart - Idle Speed Control (ISC) Check
G263

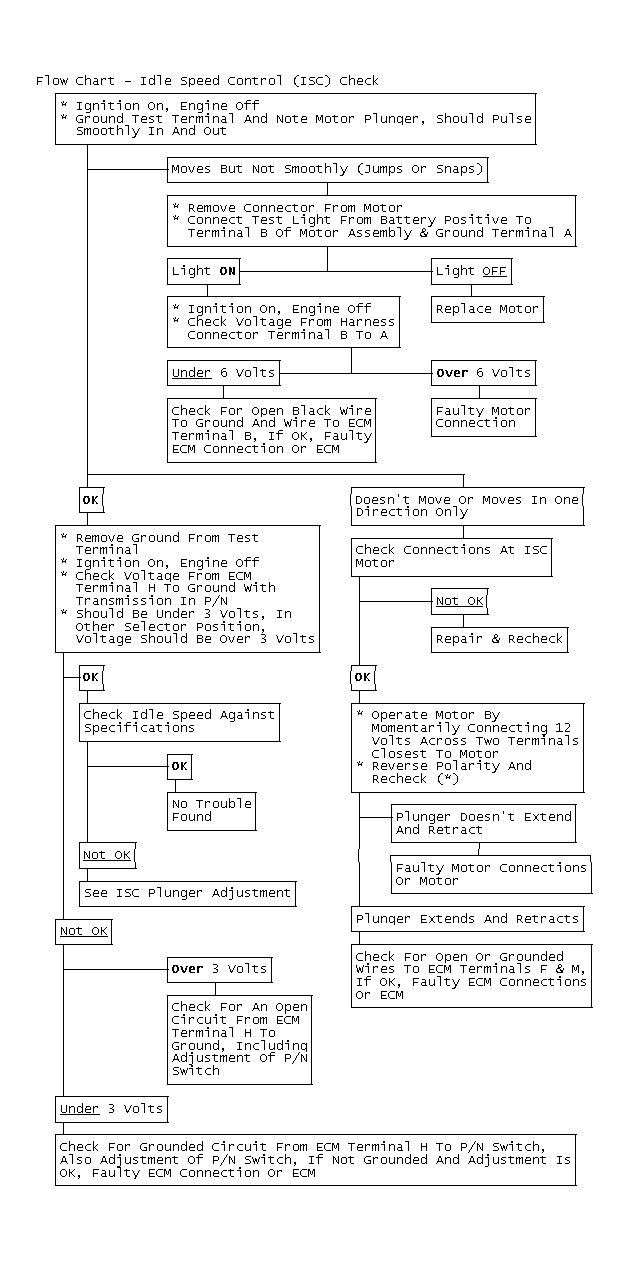

Fig 2: Flow Chart - Idle Speed Control (ISC) Check
GB0046406
