Code 21 - TPS Circuit

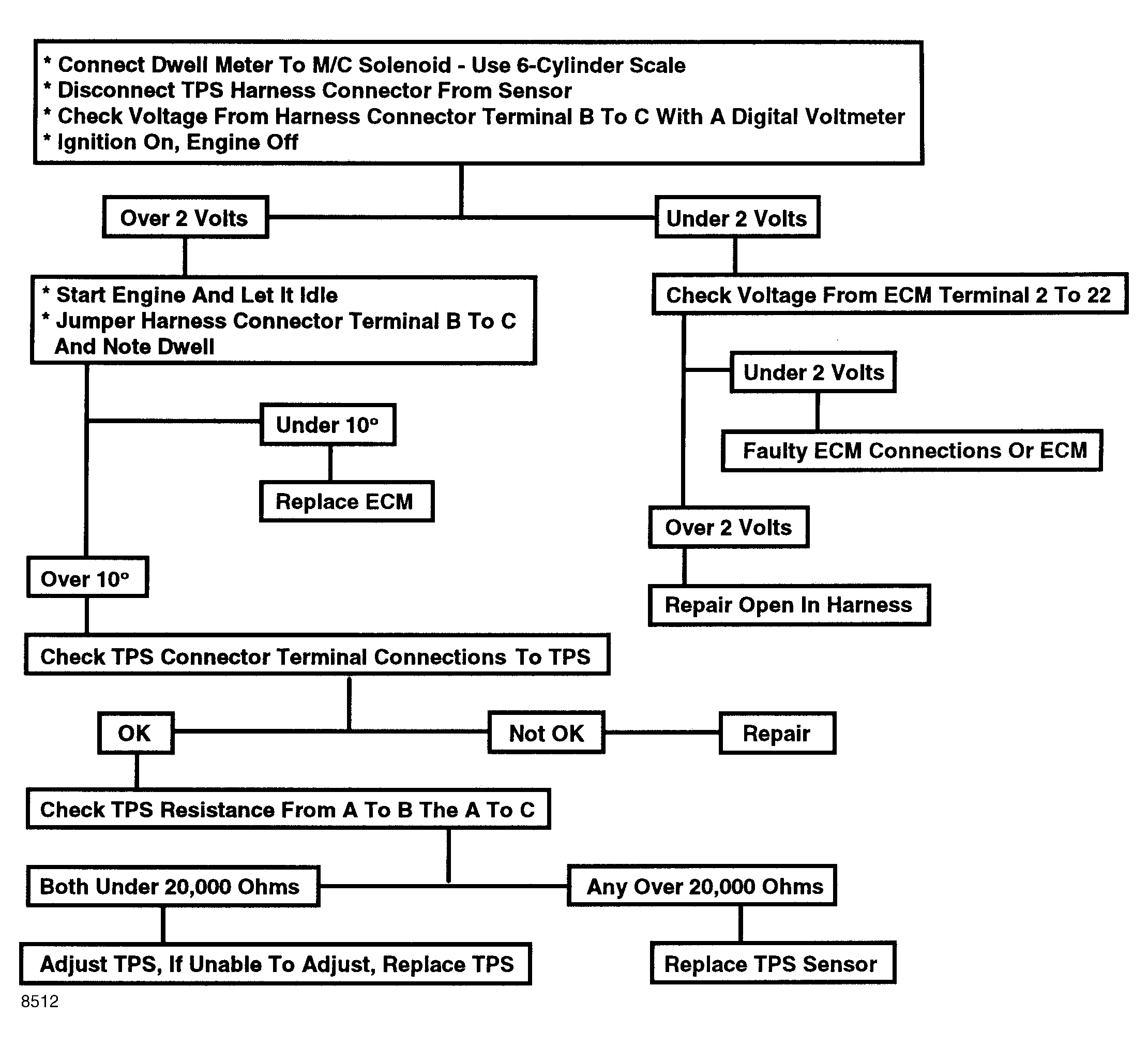

Fig 1: Flow Chart, Code 21 - Throttle Position Switch (TPS) Circuit
G8512
Fig 2: Flow Chart, Code 21 - Throttle Position Switch (TPS) Circuit
GB0048239
