Code 23 - M/C Solenoid Circuit

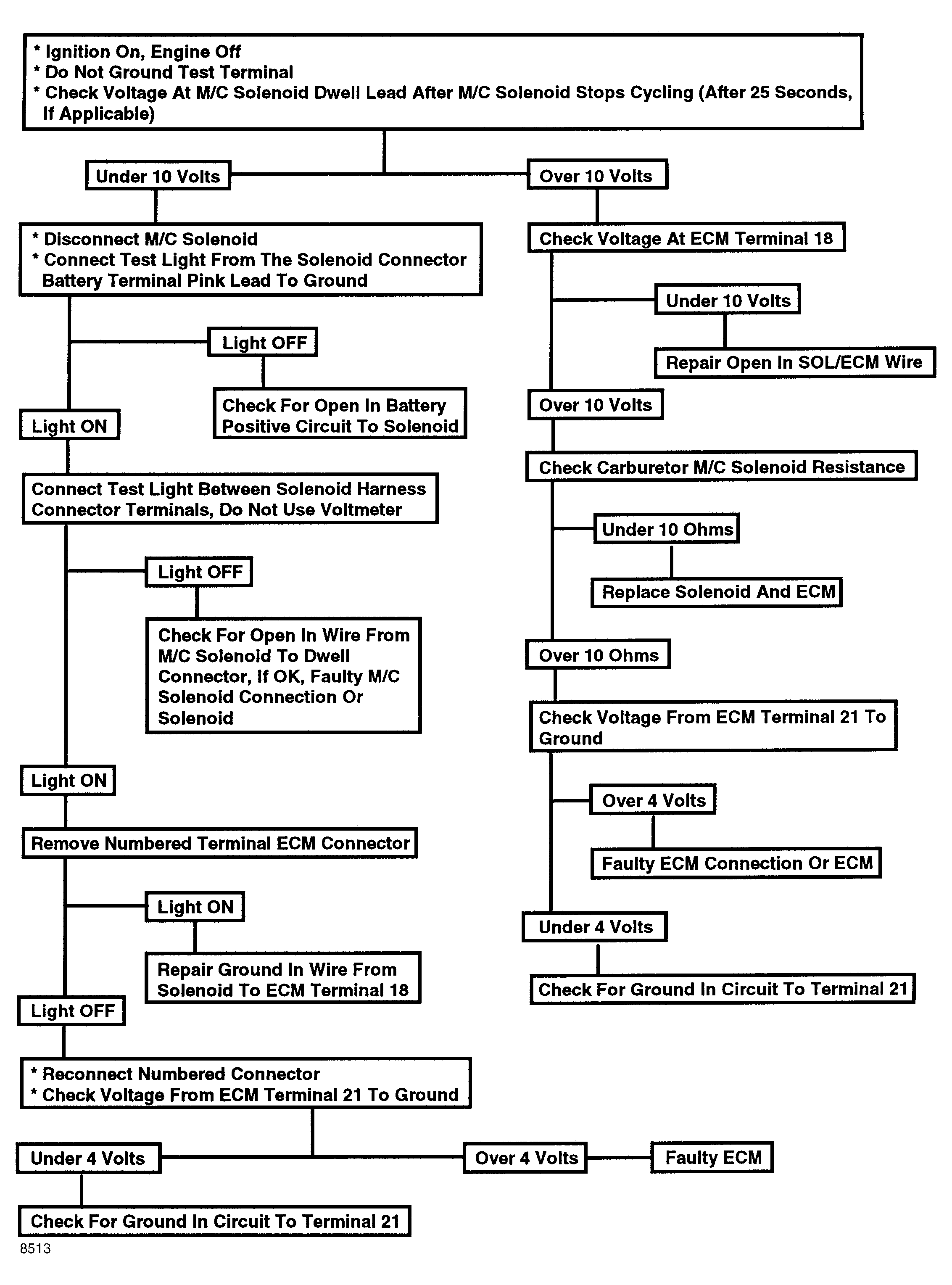

Fig 1: Flow Chart, Code 23 - Open or Grounded Mixt Control Sol Circuit
G8513

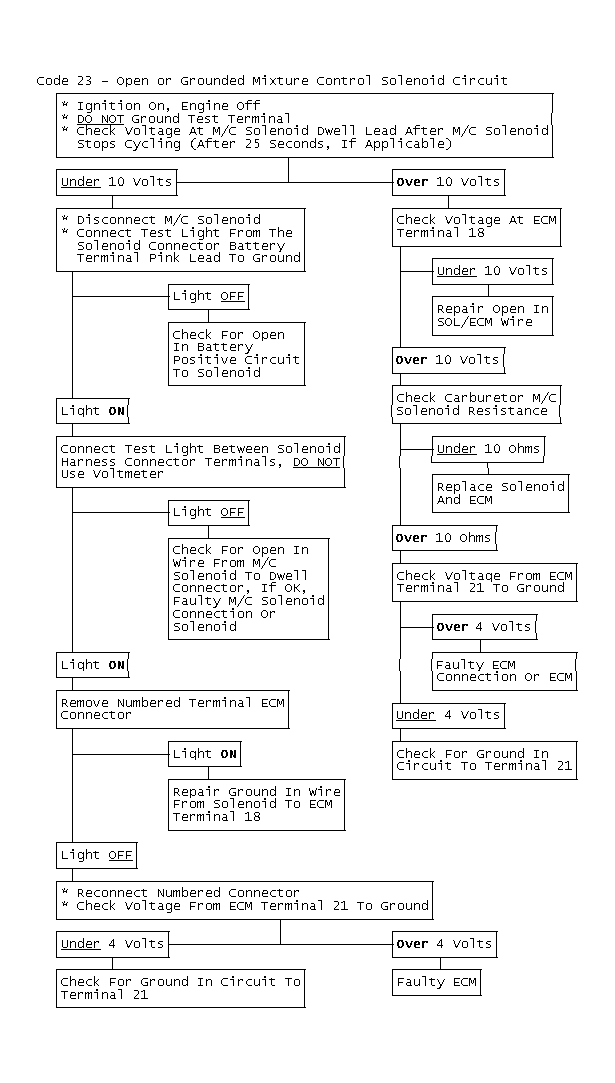

Fig 2: Flow Chart, Code 23 - Open or Grounded Mixture Control Solenoid Circuit
GB0048240
