Code 34 - Vacuum Sensor Circuit

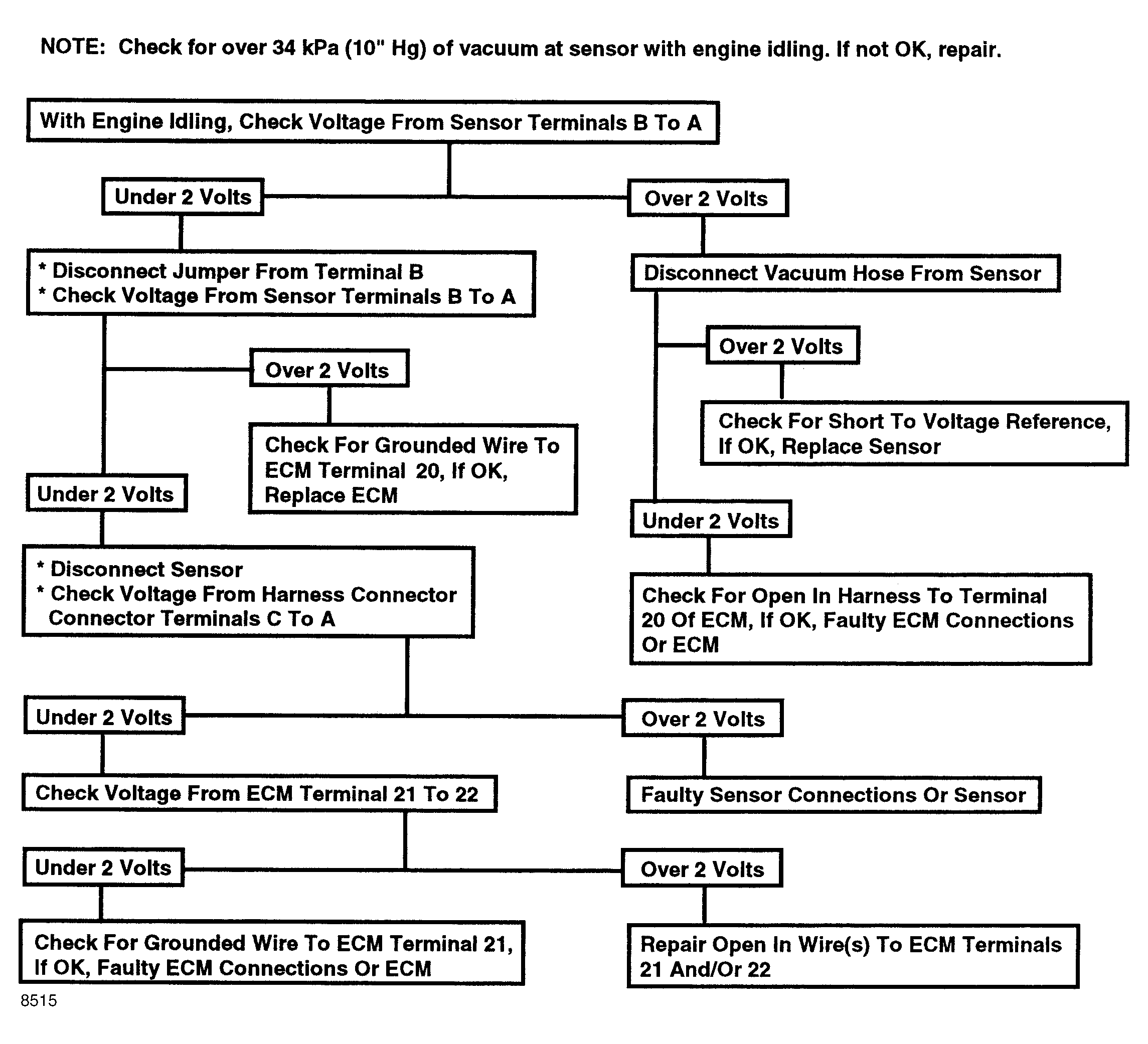

Fig 1: Flow Chart, Code 34 - Vacuum Sensor Circuit
NOTE:
Check for over 34 kPa (10" Hg) of vacuum at sensor with engine idling. If not OK, repair.
Fig 2: Flow Chart, Code 34 - Vacuum Sensor Circuit
