Est Performance Check

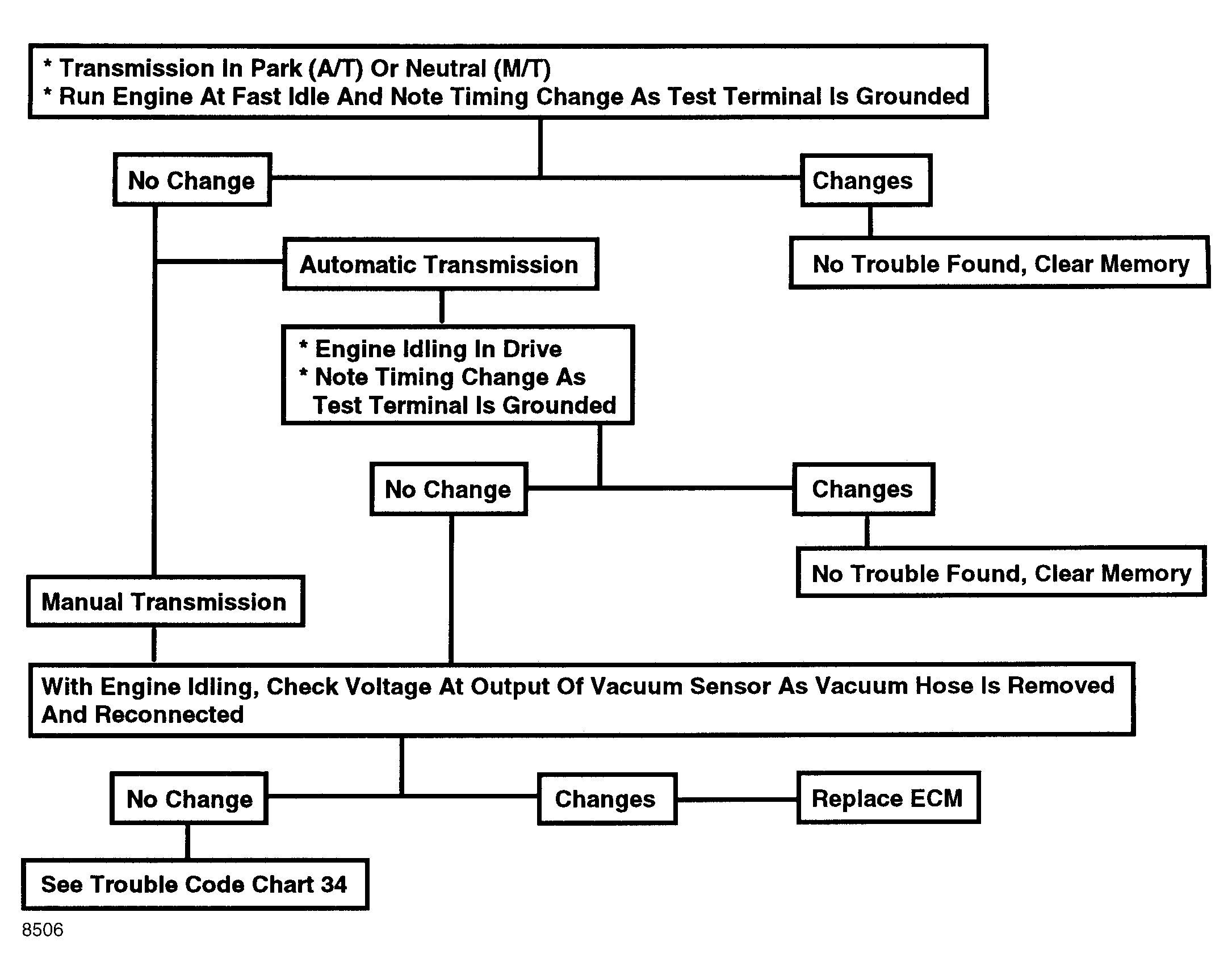

Fig 1: Flow Chart - EST Performance Check

G8506

Fig 2: Flow Chart - EST Performance Check

GB0048230
