Code 12 - No Reference To ECM

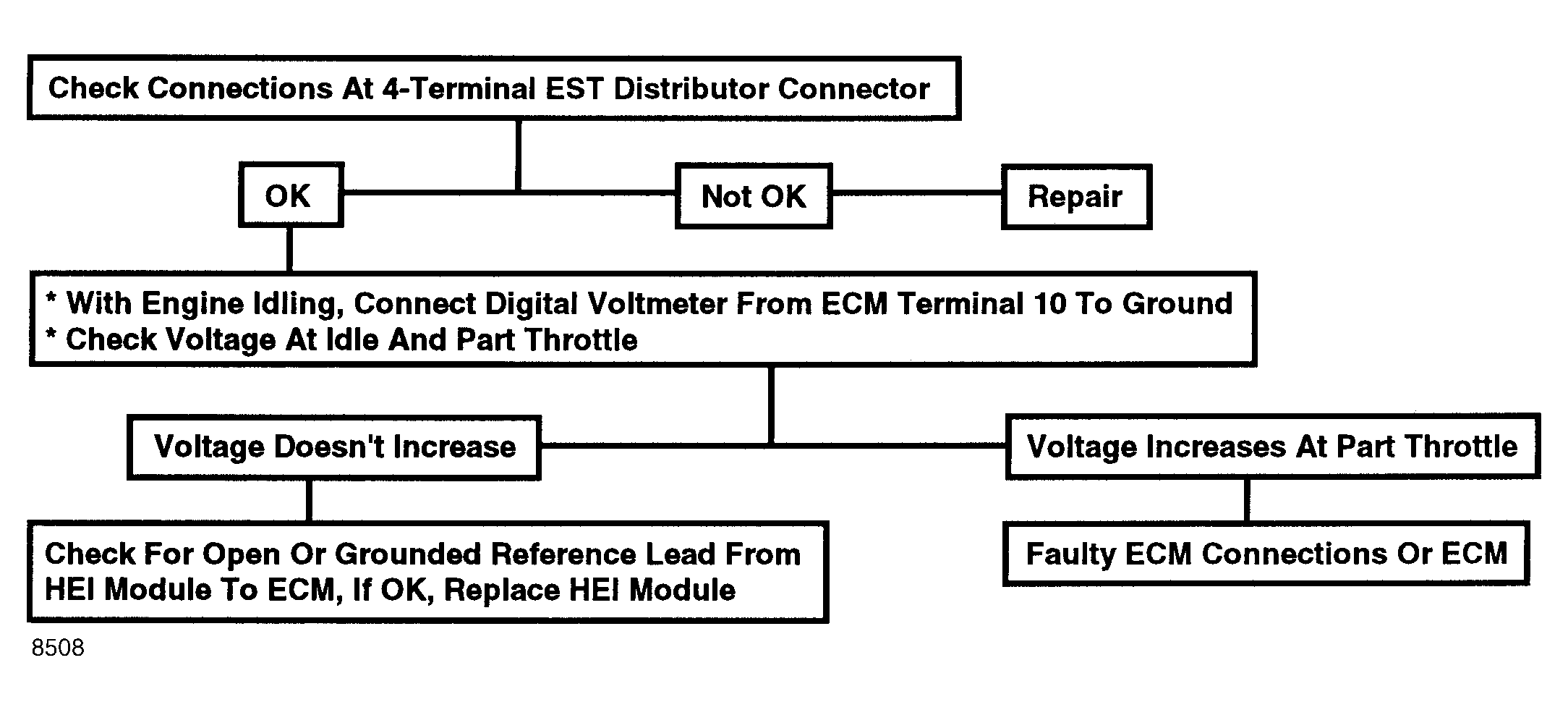

Fig 1: Flow Chart, Code 12 - No Distributor Reference Signal To ECM
G8508
Fig 2: Flow Chart - Code 12 - No Distributor Reference Signal To ECM
GB0048235
