Ignition System - HEI-Est (CALIF): Overhaul: Disassembly

  1. Remove coil connector and disconnect 4-wire EST connector. Turn 2 latches and lift off distributor cap.

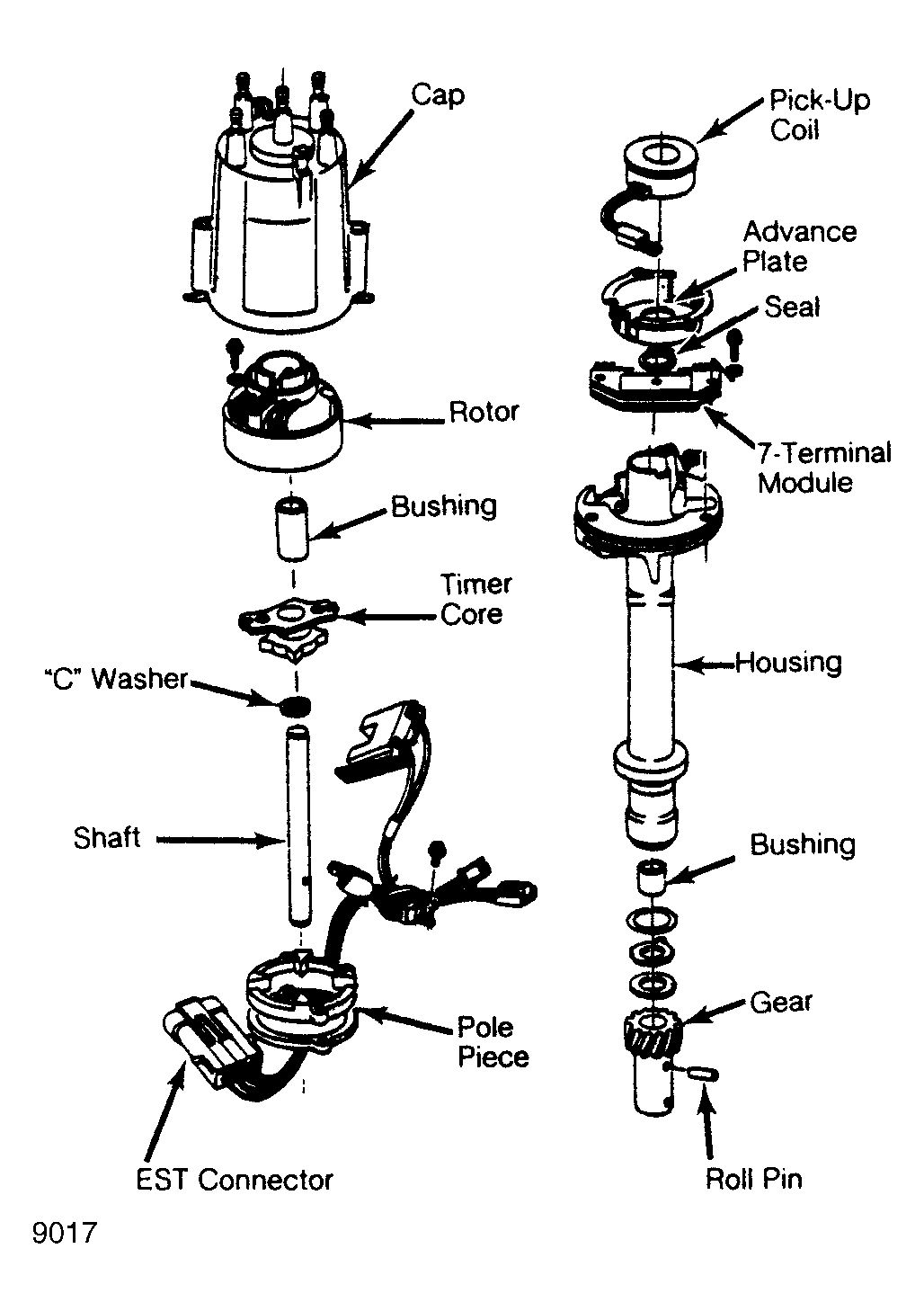

  2. Remove rotor and disconnect pick-up coil leads from HEI-EST module. See Figure. Mark distributor shaft and gear for later reassembly. Drive out roll pin and remove distributor shaft from housing.
  3. Remove retaining "C" washer, pick-up coil, magnet and pole piece. Remove 2 module attaching screws and capacitor screw. Lift module, capacitor and harness assembly from distributor housing. Disconnect wiring harness from module.
