ECM Terminal Id

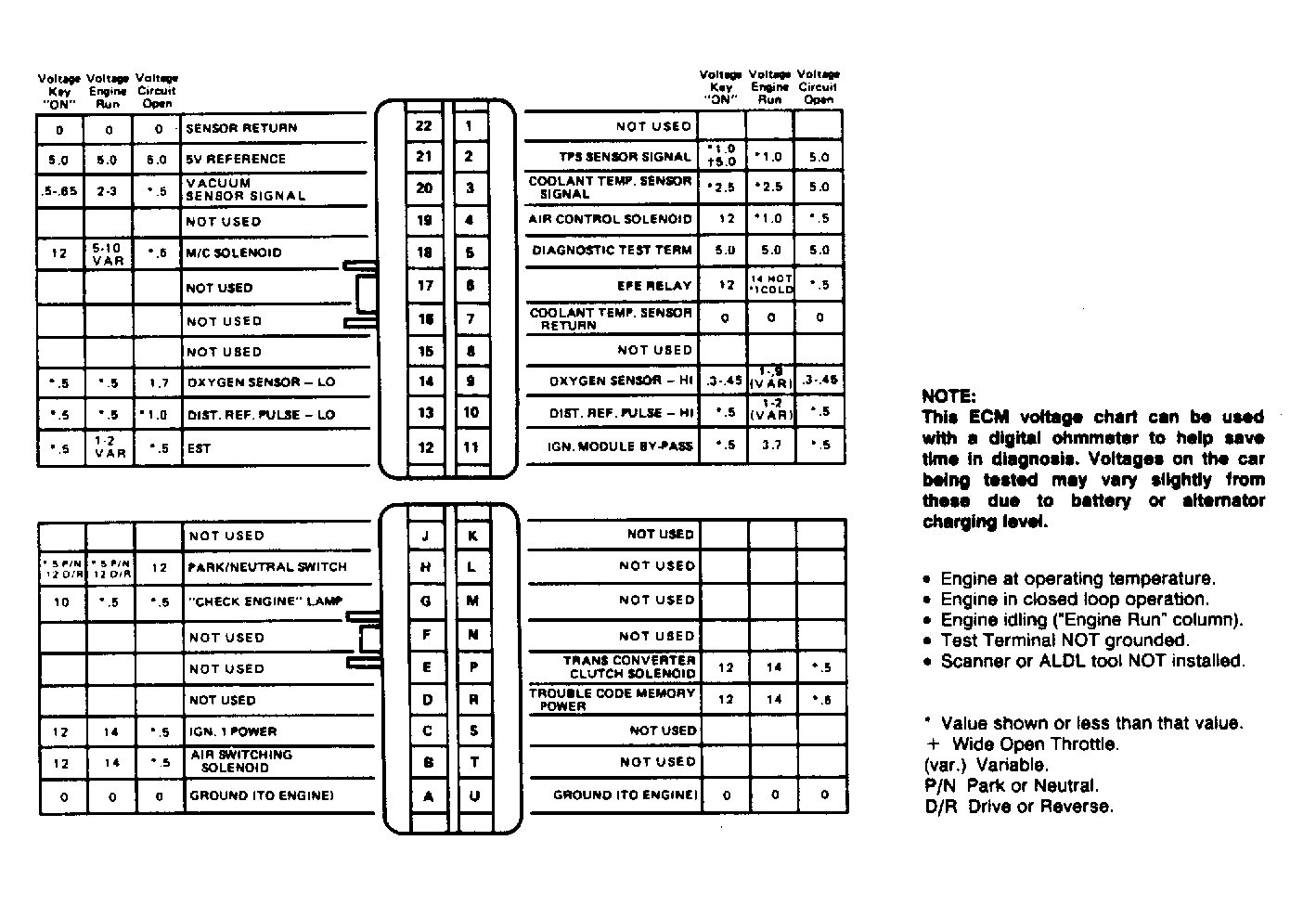

Fig 1: ECM Terminal Identification & Voltage - 2.8L Engine
G9445

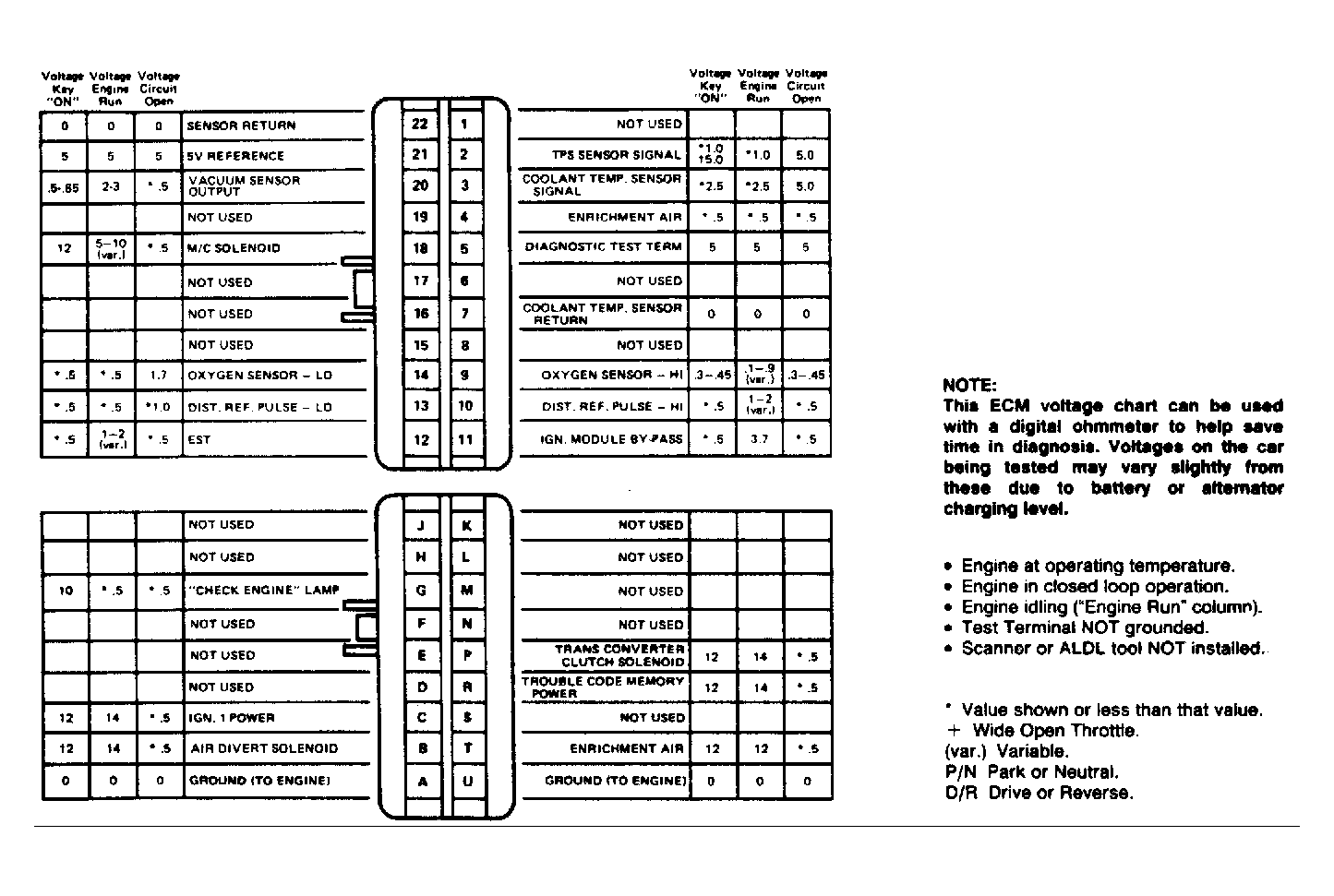

Fig 2: ECM Terminal Identification & Voltage - 4.1L Engine
G9446

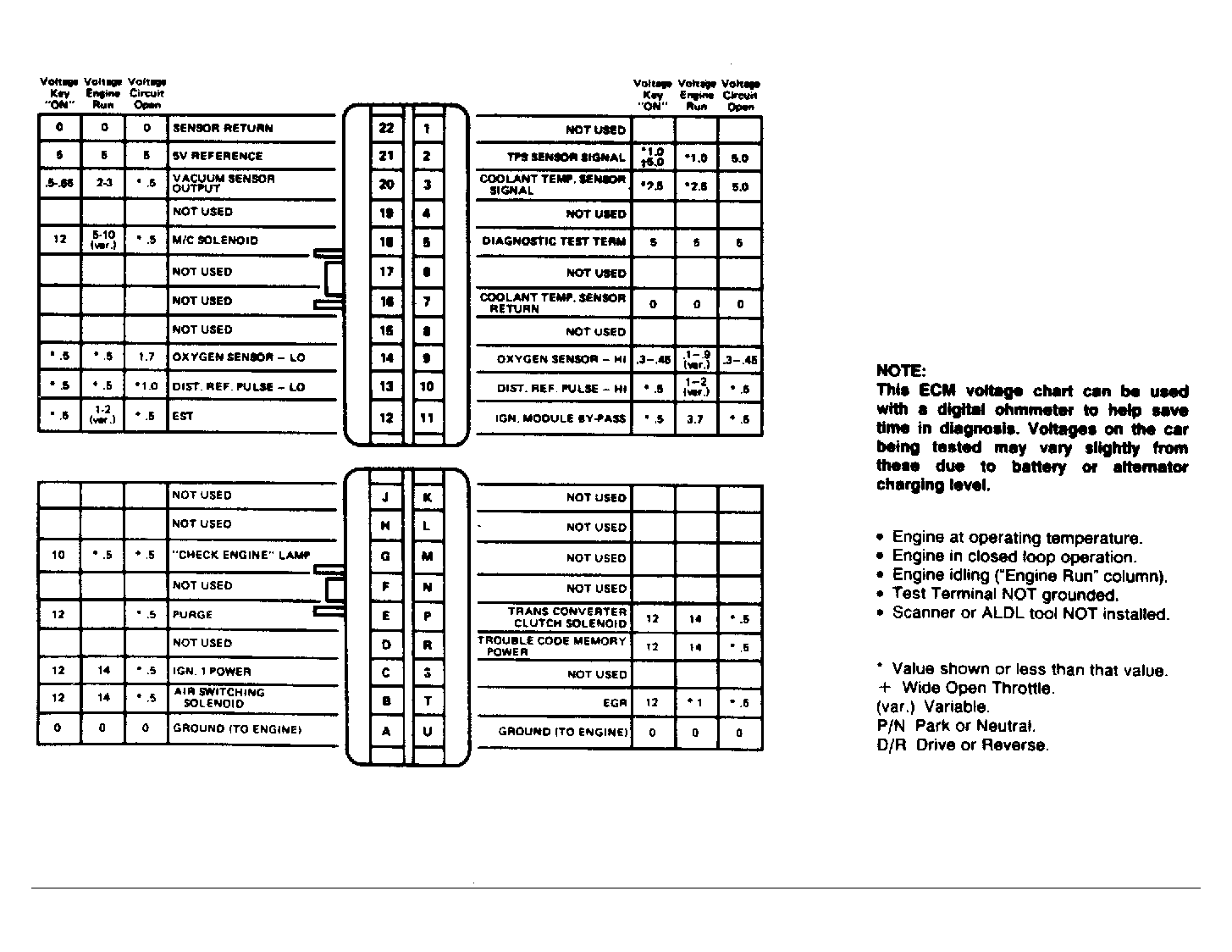

Fig 3: ECM Terminal Identification & Voltage - 5.0L & 5.7L Engines
G9447
