Chart C4B - Ignition System Check (2.8L Only)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Chart C4B - Ignition System Check (2.8L Only)

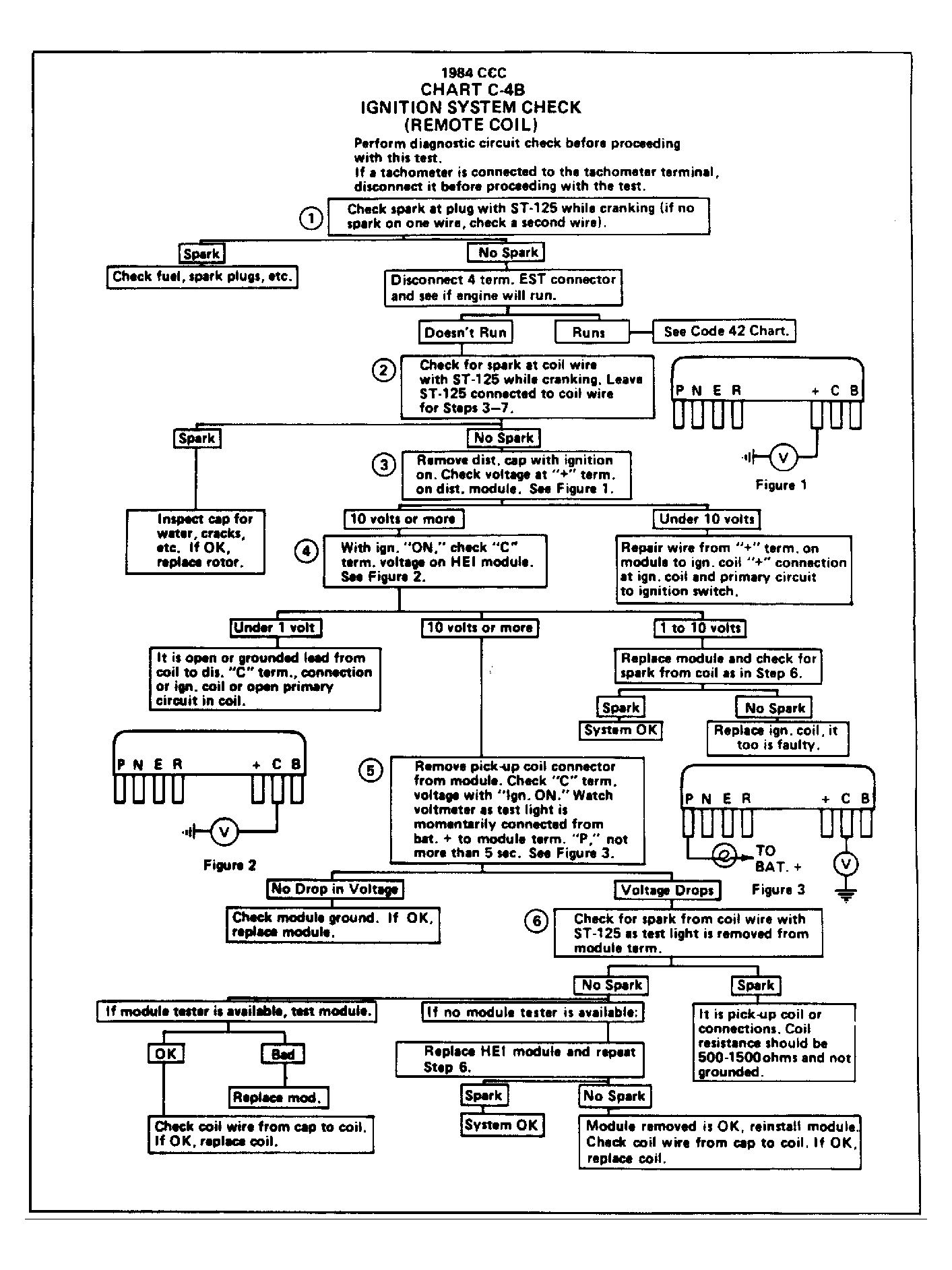

Fig 1: Chart C4B - Ignition System Check (2.8L Only)
