Vacuum Sensor

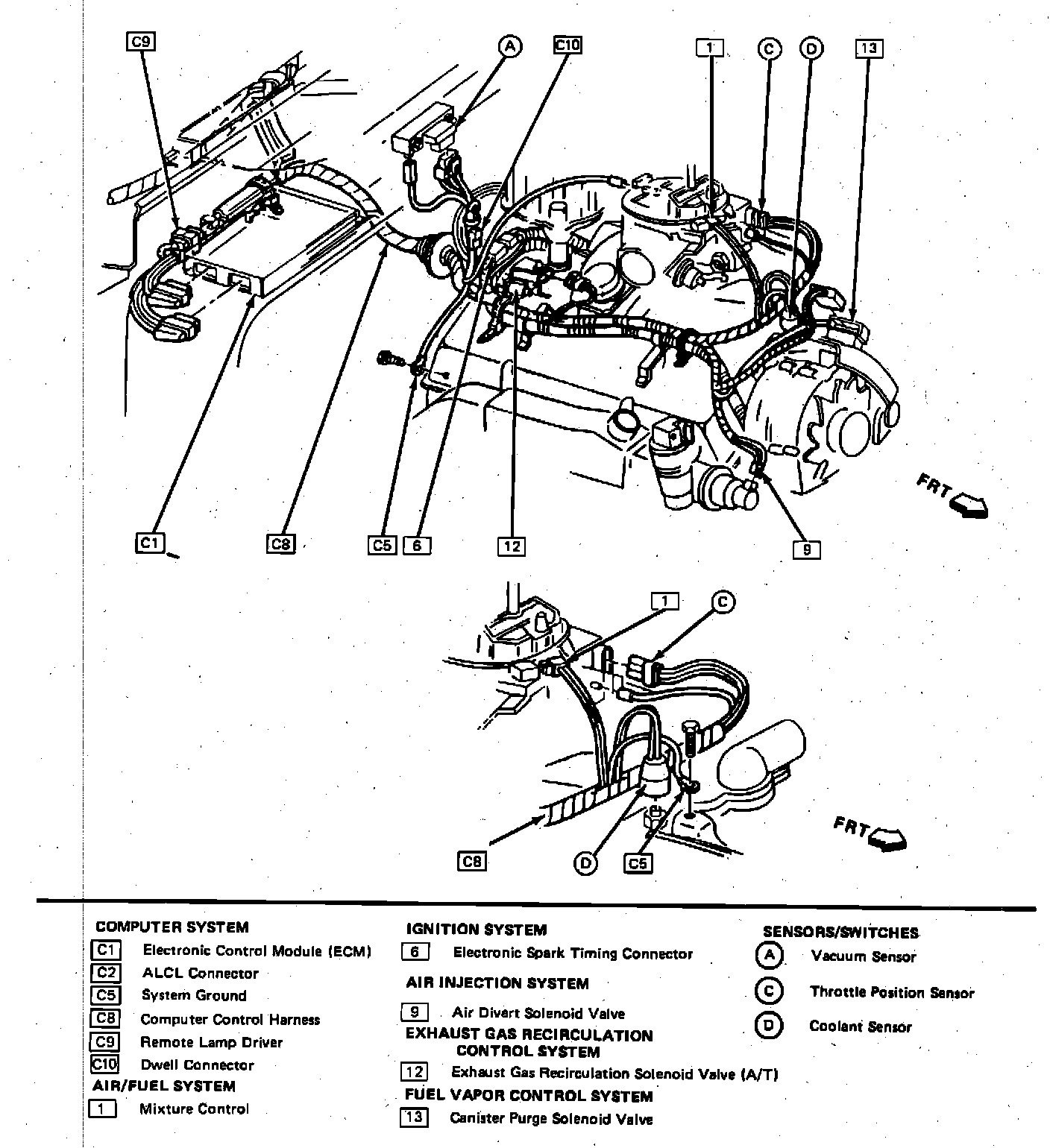

Underhood & Engine Components (Part 1 Of 3).:

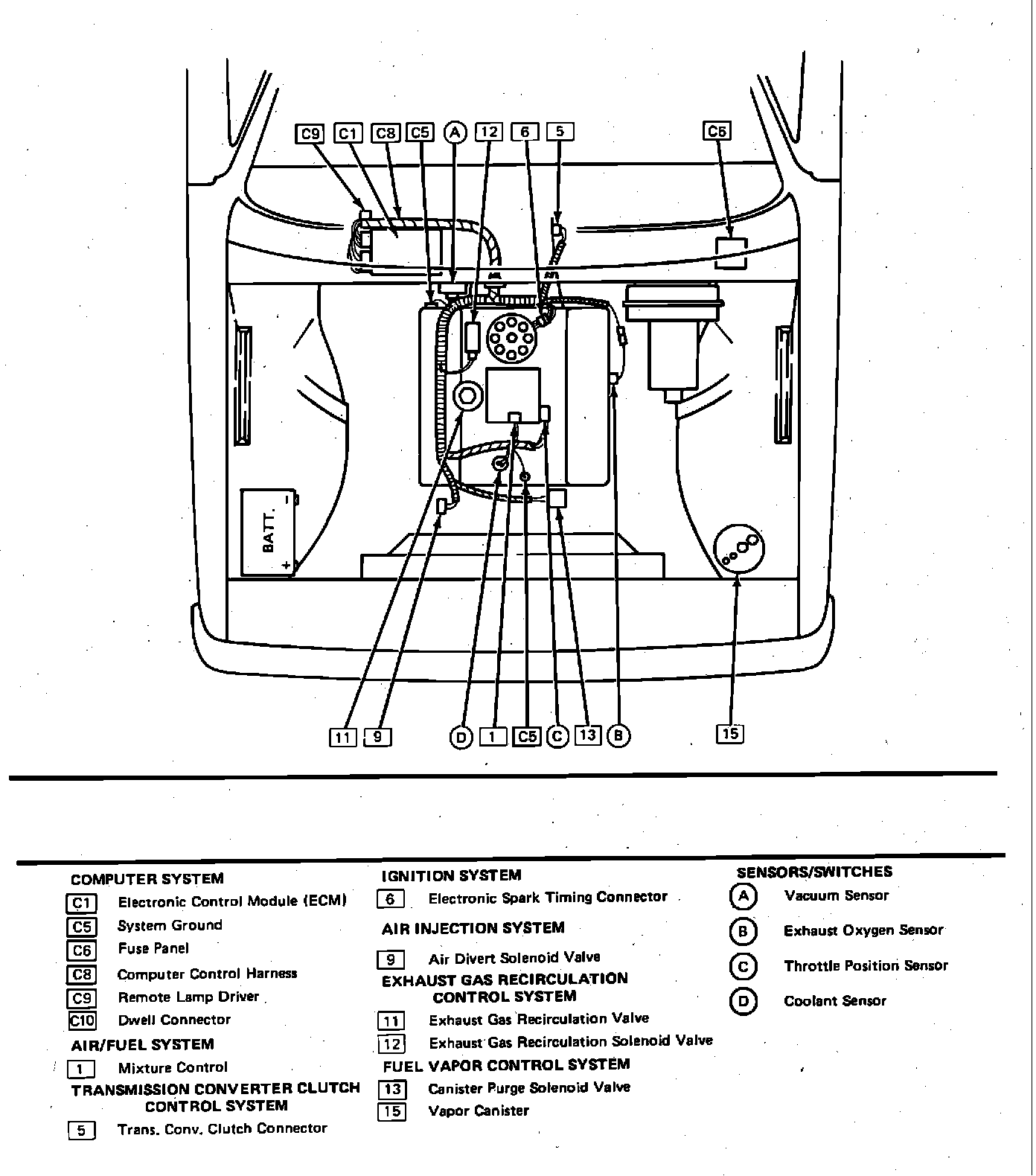

Underhood & Engine Components (Part 1 Of 3).:

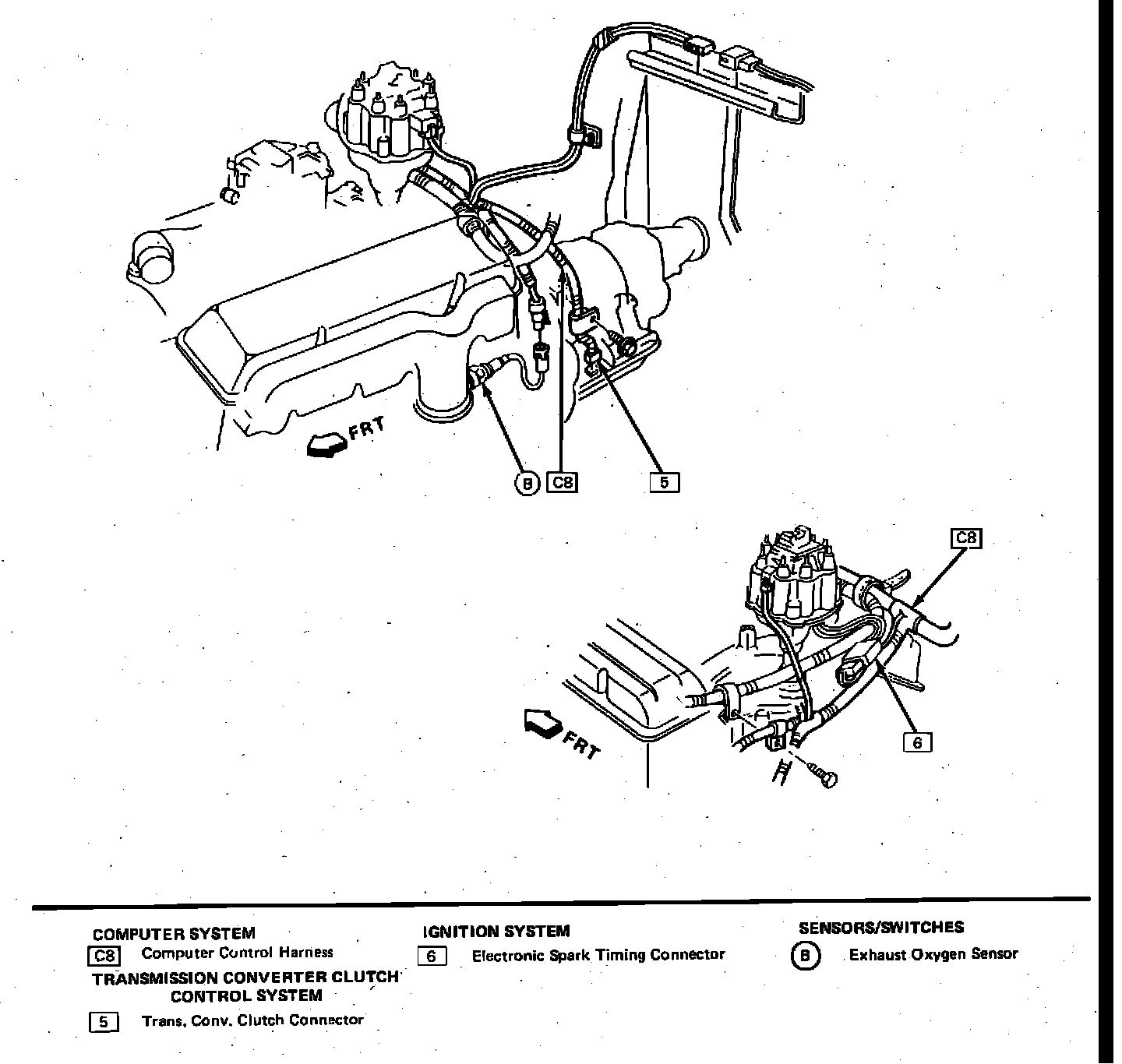

Underhood & Engine Components (Part 1 Of 3).:




RH Side Of Dash Panel

Applicable to: 1984 CK Series w/5.0L & 5.7L
